Product Description

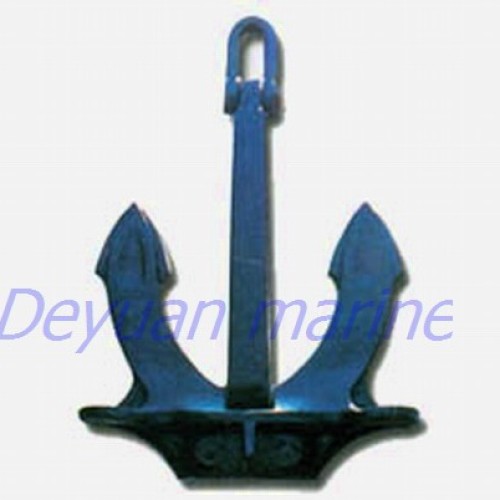

1.Model: Type M spek anchor
2.certificates:ABS,CCS, GL, LR, BV and DNV
3.Weight:2460-11100KG
4.Material:steel
Nominal weight (KG) mm
A B C D F
2460 2010 1100 324 1514 764
2640 2070 1150 352 1584 794
2850 2070 1150 352 1584 804
3060 2155 1200 360 1650 802
3300 2155 1200 360 1650 834
3540 2350 1200 360 1650 834
3780 2400 1350 393 1850 880
4050 2430 1350 393 1850 917
4320 2520 1400 413 1926 914
4590 2520 1400 413 1926 931
4890 2520 1400 413 1926 954
5250 2610 1450 414 2000 964
5610 2610 1450 414 2000 981
6000 2700 1500 446 2060 1006
6450 2700 1500 446 2060 1028
6900 2890 1550 456 2138 1034
7350 2890 1550 456 2138 1062
7800 2920 1550 456 2138 1091
8300 3060 1700 510 2332 1126
8700 3060 1700 510 2332 1156
9300 3060 1700 510 2332 1188
9900 3160 1700 510 2332 1188
10500 3190 1770 531 2440 1187
11100 3290 1770 531 2440 1212
