Product Description
self-priming vortex pump
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

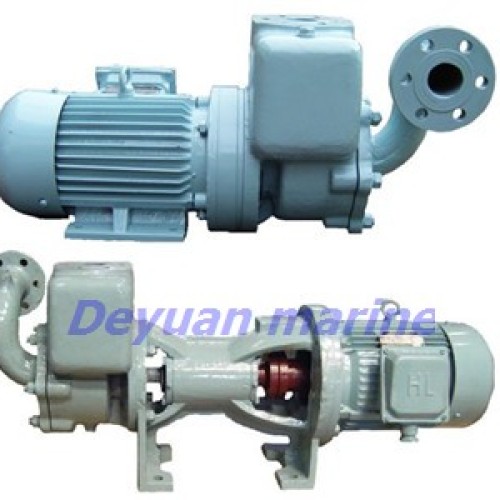

CWX series marine self-priming vortex pump are applicable to pumping fresh and sea water for drinking washing and sanitary uses in vessels.
The pump rotates clockwise viewed from motor.
Main technical parameter
Type (50HZ)Main technical parameter Motor power(kw)
Capacity
(m3/h) Head
(m) Speed
(r/min) NPSHR
(m) Shaft power(kw)
1.5CWX-2 3 40 2900 4 2 2.2
1.5CWX-3 6.5 35 2900 4 2.3 3
1.5CWX-4 10 35 2900 4 2.5 4
1.5CWX-2A 3 40 2900 4 2 2.2
1.5CWX-3A 6.5 35 2900 4 2.3 3
1.5CWX-4A 10 35 2900 4 2.5 4
60HZ main technical parameter
1.5CWX1-2 3.6 57 3500 4.5 3.43 4
1.5CWX1-3 7.8 50 3500 4.5 3.95 5.5
1.5CWX1-4 12 50 3500 4.5 4.29 5.5
1.5CWX1-2A 3.6 57 3500 4.5 3.43 4
1.5CWX1-3A 7.8 50 3500 4.5 3.95 5.5
1.5CWX1-4A 12 50 3500 4.5 4.29 5.5
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
