Product Description

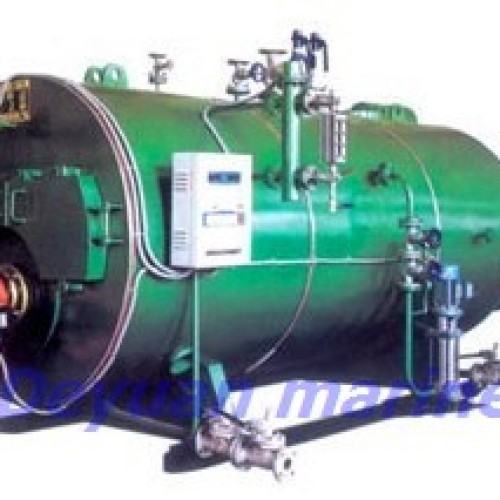

Marine horizontal oil-fired boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.
HOB-series boiler, with a cylindrical shell, is settled horizontally. it is very suitable for the ship with low height between decks. It owns a wave-shape furnace as its burning room and single-head screw tube as its heating-transferring element, therefore, HOB-series boiler has lighter weight, smaller cubage and higher heat-transferring efficiency, that made it more economical.
The steam of the boiler can warm the host and assisted engine, heat the fuel oil and do something else during daily life. The steam capacity is 0.5t/h~6t/h, the maximal working pressure is 1.25Mpa.
Steam Output(kg/h) Working Pressure (MPa) A (mm) B (mm) ØC (mm) ØD (mm) H (mm) Net Weight of Boiler(kg)
500 0.7 2300 596 1220 250 1840 2400
700 0.7 2550 550 1224 260 1900 3150
1000 0.7 2900 834 1628 300 2130 4900
1500 0.7 3500 950 1628 350 2240 6800
2000 1.0 3920 1045 1828 400 2574 10300
4000 1.0 4915 967 2234 500 2760 14000
6000 1.25 5450 1070 2436 600 3000 21500
More types can be offered,pls contact us for more details.
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
