Product Description

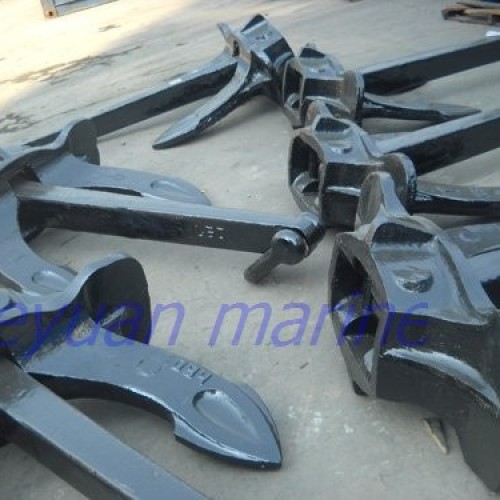

50KGS to 30000KGS Baldt Anchor
1.Material: Steel ZG200-400
2.Weight: 50KGS-35000KGS
3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS
Kg A B C D E
50 82 312 236 420 165
75 95 358 270 482 190
100 102 360 305 505 208
150 120 450 340 606 237
200 128 460 366 604 249
250 145 510 410 680 278
300 155 560 442 730 300
400 170 604 482 800 328
500 195 710 530 900 360
625 195 725 545 900 380
750 205 770 584 965 415
1000 235 854 640 1068 456
1200 250 900 710 1170 470
1500 265 1000 748 1232 508
1720 298 1054 844 1320 533
2000 320 1157 864 1460 625
2200 320 1157 868 1473 591
2500 320 1157 868 1473 591
3000 326 1210 912 1504 620
3500 326 1210 997 1626 699
4000 350 1300 1054 1740 718
5000 375 1400 1130 1804 768
6000 456 1600 1194 2016 870
7000 456 1660 1225 2083 870
8000 463 1683 1241 2375 870
10000 490 1810 1470 2438 1000
11000 500 1900 1413 2408 1016
11500 500 1900 1413 2408 1016
12500 525 1920 1435 2424 1016
15200 600 2150 1600 2616 1090
17200 600 2215 1670 2795 1200
20000 676 2490 1866 3080 1268
22000 676 2490 1866 3080 1295
25000 711 2616 1969 3048 1365
30000 759 2794 2096 3251 1454
35000 800 2946 2210 3429 1524
