Product Description
Marine oil fired boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.

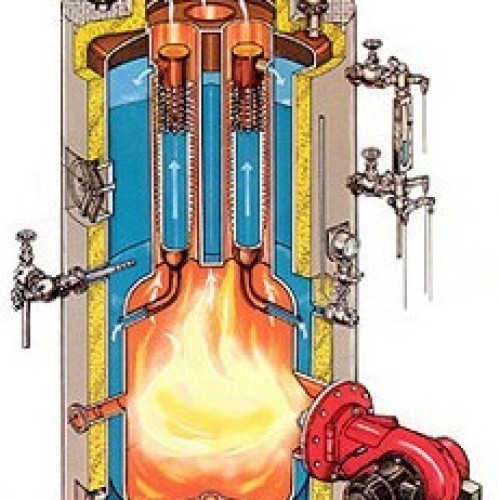

OBS-series small vertical oil-fired boiler is running automatically, this is right for different ship companies, who want ship cabin with no person operating. When the automatic controlling system is wrong and the cool-boiler is started, it can be controlled by hand. The alarm signal-output set connected outside is installed in the boiler control pocket, the same as remote-control emergency cut connection tip.
There is a manhole in the nominal part in this series boiler, convenient for the inspection and maintaining of the boiler's water surface. There are many hand hole underside the boiler, not only for the inside clearing, but also for the connection with exhaust-gas economizer.
Vaporized Quantum
( Kg/h ) Working Pressure
( MPa) Overall Dimension( mm ) Net Weight of Boiler (Kg) Water Capacity
(m3)
A B ΦC
500 0.7 3550 3100 1250 2600 1.2
700 0.7 3750 3300 1250 2900 1.3
1000 0.7 3870 3370 1450 3400 1.9
1200 0.7 3910 3410 1500 3900 2.1
1500 0.7 4130 3630 1650 4500 2.7
2000 0.7 4410 3910 1750 5400 3.0
2500 0.7 4380 3880 1950 6900 3.8
3000 0.7 4680 4080 2050 7700 4.9
4500 0.7 5240 4590 2350 11400 6.8
6000 0.7 6180 5480 2450 14000 8.4
