Product Description

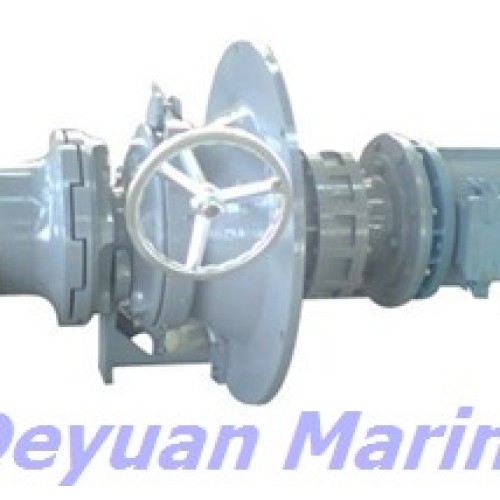

We,China Deyuan marine fitting Co.,ltd ,can provide different types of electric warping hawser capstan and electric or hydraulic mooring capstan.Pls feel free to contact us for more details.
Size Mooring load
(KN) Moorin speed
(mm) Wire rope dia.
(mm) Motor power
(KW)
electric hydraulic
5KN 5 ≥18 Φ11 3/1.2 5.5
10KN 10 ≥18 Φ11 4.3/1.7 7.5
15KN 15 ≥18 Φ13 8.5/3.5 11
20KN 20 ≥18 Φ15 11/11/7.5 1.5
30KN 30 ≥18 Φ17.5 16/16/11 18.5
50KN 50 ≥18 Φ20.5 16 30
70KN 70 ≥15 Φ26 22 45
100KN 100 ≥15 Φ28 45/45/30 55
120KN 120 ≥15 Φ32.5 60/60/45 75
150KN 150 ≥15 Φ36.5 60/60/45 90
200KN 200 ≥15 Φ40 75/75/36 110
250KN 250 ≥12 Φ46 75/75/36 110
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
