Product Description
Mainly used for handling accommodation ladders upon the berthing of the vessel as well as handling the pilot ladders when the vessels enter the harbor.The axis of the motor and the reeling drum are laid out perpendicularly.

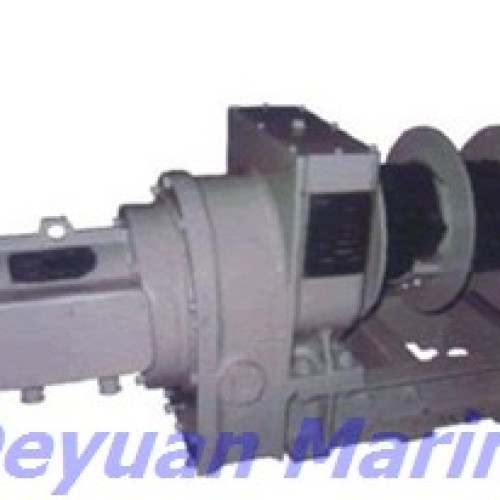

Electric winch
Working load 8~12KN 13~16KN
Supporting load 24~36KN 39~48KN
Rope Dia Φ9~12mm Φ13~15mm
Electric motor 380v,50hz 3.7kw 380v,50hz 5.5KW
440v,60hz 4.0kw 440v,60hz 6.3KW
Duty factor 30min
Hoisting speed 5~10m/min
Pneumatic winch
Working load 8~12KN 13~16KN
Support load 24~36KN 39~48KN
Rope Dia Φ9-12mm Φ13~15mm
Pneumatic motor Power 3.5~5.5ps 7ps
Air consumption 3.5~5.5m3/min 7m3/min
Air press 0.5~0.7Mpa
Hoisting speed 3.5~10m/min
Loading ..
