Product Description

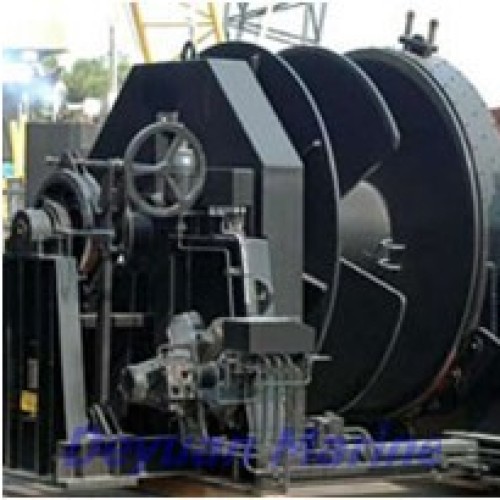

Towing winch consists of e-motor, gear-driven device, drum, warping end, spooling device, clutch unit, and brake unit, it has simple structure enable easy operation.
Power: Hydraulic motor
Driver: Exposed gear
Drum load
(KN) Rate speed
(m/min) Holding load
(KN) Breaking load
（mm) Drum Dia.
(mm) Drum capacity
(φmm*m)
160 7.5 470 426 500 500
250 7.5 710 645 600 600
400 7.5 1120 1010 720 750
630 7.5 1600 1450 900 850
800 5 1870 1700 950 1000
1000 5 2030 1840 1000 1000
1250 5 2340 2120 1100 1200
1600 5 3000 2720 1200 1200
2000 5 3840 3483 1300 1500
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
