Product Description
marine exhaust-gas boiler
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.

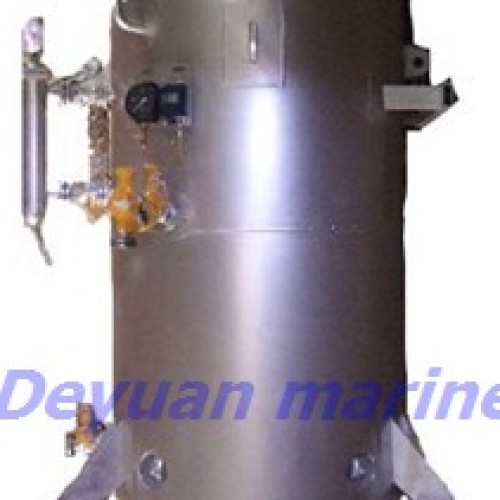

EGB-series exhaust-gas boiler with a boiler shell can be settled vertically ,this series boiler has a natural circulation structure; it is a perfect energy-saving set to make use of exhaust heat of discharged gas from ship diesel. It owns smaller cubage ,lighter weight, higher exhaust-heat utilization efficiency because it uses the effective single-head screw tube as its heat-transferring smoke tube.
Heating surface Working pressure Main engine power
recommendation Dimension(mm) Boiler weight
m2 Mpa kw H D D1 C kg
35 0.7 1100-1600 3320 1020 400 750 3000
55 0.7 1800-2400 3520 1220 500 850 3800
70 0.7 2300-3000 3520 1320 500 900 4400
85 0.7 3000-3800 3520 1450 600 1000 5600
100 0.7 3500-4500 3520 1550 600 1050 7000
120 0.7 4500-5500 3600 1920 9000
150 0.7 5500-6500 3700 2020 11000
180 0.7 6500-8000 3700 2220 13500
More types can be offer,pls contact us for more details
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
