Product Description

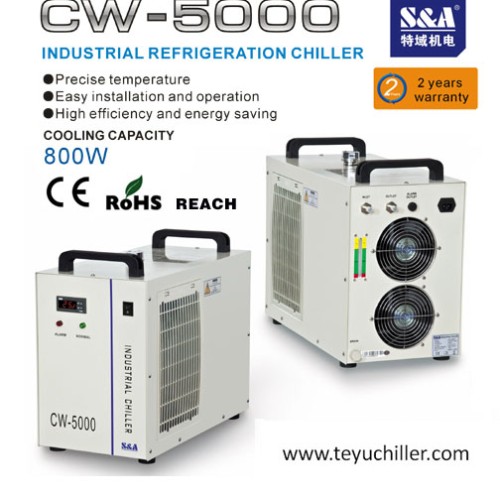

S&A water transportable cooling system CW-5000 S&A CW-5000 is refrigeration type water transportable cooling system of 800W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. S&A chillers have passed ISO, CE,RoHS and REACH approvals and the warranty is 2 years. water chiller CW-5000 features 1. 800W cooling capacity; use environmental refrigerant; 2. Compact size, long working life and simple operation; 3. ±0.3℃ precisely temperature control; 4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions; 5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; 6. Multiple power specifications; CE approval;RoHS approval; Chiller Specfications: CW-5000AG: applied to cool a single 80W CO2 laser tube (emitting rate higher than 60%); CW-5000AH: applied to cool a single 5KW spindle or welding equipment; CW-5000AI : applied to cool a single 5W-10W solid-state laser. Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L Max. lift:10M-25M; Max. flow: 10L/min- 16L/min N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) About S&A Brand S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production. “S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%. CONTACT S&A TE:+86-20-89301885 FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyuchiller.com Website: http://www.teyuchiller.com
