Product Description

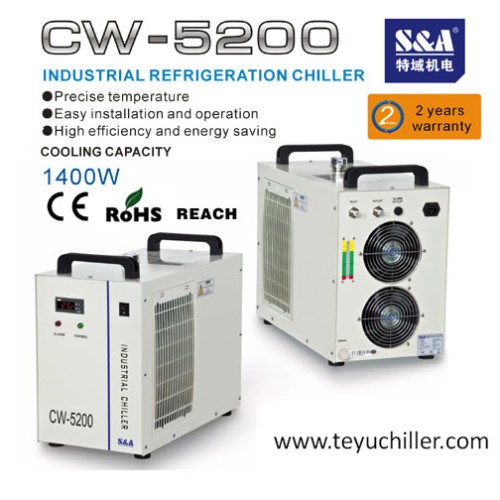

Recirculating chiller for rotary evaporator / small distillation instrument S&A CW-5200 recirculating water chiller is suitable to cool rotary evaporator / small distillation instrument. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. S&A chiller has CE，RoHS and REACH approval. CW-5200 water chiller parameter: Model CW-5200AG CW-5200BG CW-5200DG CW-5200TG CW-5200AH CW-5200AI CW-5200BI CW-5200DI Voltage 220V 220V 110V 220V 220V 220V 220V 110V Frequency 50Hz 60Hz 60Hz 50/60Hz 50Hz 50Hz 60Hz 60Hz Current 2.4~3.1A 2.6~3.3A 4.5~6.5A 2.4~3.3A 2.4~3.1A 2.4~3.1A 2.6~3.3A 4.5~6.5A Compressor power 0.52KW 0.5KW 0.68KW 0.49/0.57KW 0.52KW 0.52KW 0.5KW 0.68KW 0.71HP 0.68HP 0.93HP 0.66/0.77HP 0.71HP 0.71HP 0.68HP 0.93HP Refrigeration capacity 5084Btu/h 4982Btu/h 5186Btu/h 4825/5797Btu/h 5084Btu/h 5084Btu/h 4982Btu/h 5186Btu/h 1.49KW 1.46KW 1.56KW 1.41/1.70KW 1.49KW 1.49KW 1.46KW 1.56KW 1281Kcal/h 1256Kcal/h 1307Kcal/h 1219/1465Kcal/h 1281Kcal/h 1281Kcal/h 1256Kcal/h 1307Kcal/h Refrigerant R-22 / R-134a / R-410a Refrigerant charge 360g 380g 350g 360/380g 360g 360g 380g 350g Precision ±0.3℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.03KW 0.05KW 0.1KW Tank capacity 6L Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector Max. lift 10 M 12M 25M Max. flow 10 L/min 13L/min 16 L/min N.W 26 Kgs G.W 29 Kgs Dimension 58 X 29 X 47 cm (L X W X H) Package dimension 70 X 43 X 58 cm (L X W X H) Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona . CONTACT S&A TEL:+86-20-89301885, FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn Website: http://www.teyuchiller.com
