| Model NO.: | Cw-6000 |
|---|---|
| Packaging Qty: | Sets |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | S&a |
| Customization: | Available Customized Request |
|---|

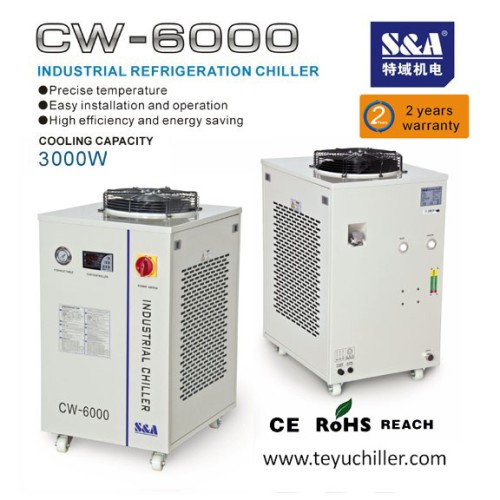

S&A water chiller CW-6000 for TECNA spot welding machine CW-6000 water chiller with compressor refrigeration is developed and produced by S&A company of China, it is applied for cooling 200W-400W TECNA spot welding machine. CW-6000 water chiller has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. Since January 2016, the warranty period of S&A chiller has extended to 2 years. Water chiller parameter: Model CW-6000AH CW-6000BH CW-6000DH CW-6000AI CW-6000BI CW-6000DI CW-6000AN CW-6000BN CW-6000DN Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz Current 1~4.5A 1~10A 1.5~5.5A 1.5~10.5A 2~6A 2~11A Compressor power 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW 1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP Refrigeration capacity 10286Btu/h 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h 3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW 2592Kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395Kcal/h 2711Kcal/h Refrigerant R-22/R-410a Refrigerant charge 800g 750g 650g 800g 750g 650g 800g 750g 650g Precision ±0.5℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.05KW 0.1KW 0.37~0.75KW Tank capacity 15L Inlet and outlet Rp1/2" Max. lift 12M 25M 28~53M Max. flow 13L/min 16L/min 70L/min N.W 60Kgs 72Kgs G.W 70Kgs 82 Kgs Dimension 67 X 47 X 89 cm (L X W X H) Package dimension 74 X 60 X 109 cm(L X W X H) CONTACT S&A TEL:+86-20-89301885, FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn, Website: http://www.teyuchiller.com About S&A Brand S&A produces more than 60000 units of industrial chillers by year, we always insist on “Quality First†in design and production. “S&A†and “TEYU†have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
