Product Description

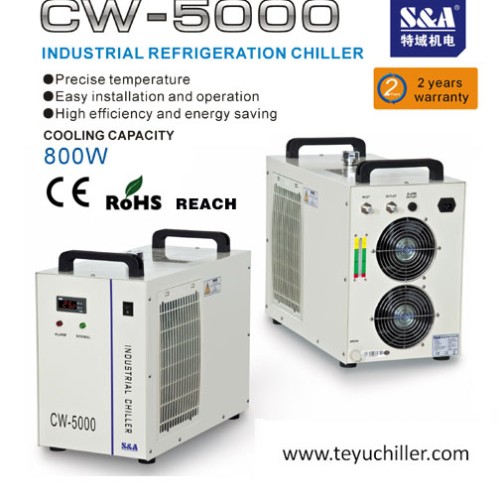

S&A air cooled chiller CW-5000 for chemical and laboratory S&A brand CW-5000 chiller developed and produced by S&A company of China, it is applied to cool chemical and laboratory equipment. Since January 2016, the warranty period of S&A chiller has extended to 2 years. S&A chiller CW-5000 features 1. 800W cooling capacity; use environmental refrigerant; 2. Compact size, long working life and simple operation; 3. ±0.3℃ precisely temperature control; 4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions; 5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; 6. Multiple power specifications; CE，RoHS and REACH approval; Chiller parameter: Model CW-5000AG CW-5000BG CW-5000DG CW-5000AH CW-5000BH CW-5000DH CW-5000AI CW-5000BI CW-5000DI Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz Current 1.4~2.1A 3.5~5.6A 1~4.8A 3.5~5.6A 1.4~2.1A 3.5~5.6A Compressor power 0.295KW 0.38KW 0.305KW 0.295KW 0.38KW 0.305KW 0.295KW 0.38KW 0.305KW 0.40HP 0.52HP 0.41HP 0.40HP 0.52HP 0.41HP 0.40HP 0.52HP 0.41HP Refrigeration capacity 2361Btu/h 2999Btu/h 2866Btu/h 2361Btu/h 2999Btu/h 2866Btu/h 2361Btu/h 2999Btu/h 2866Btu/h 0.692KW 0.879KW 0.84KW 0.692KW 0.879KW 0.84KW 0.692KW 0.879KW 0.84KW 595Kcal/h 756Kcal/h 722Kcal/h 595Kcal/h 756Kcal/h 722Kcal/h 595Kcal/h 756Kcal/h 722Kcal/h Refrigerant R-134a Refrigerant charge 300g 320g 280g 300g 320g 280g 300g 320g 280g Precision ±0.3℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.03KW 0.051KW 0.1KW Tank capacity 6L Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector Max. lift 10 M 12M 25M Max. flow 10 L/min 13L/min 16 L/min N.W 24 Kgs G.W 27 Kgs Dimension 58 x 29 x 47 cm (L x W x H) Package dimension 70 x 43 x 58 cm (L x W x H) Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona . CONTACT S&A TE:+86-20-89301885 FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn; Website: http://www.teyuchiller.com About S&A Brand S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production. “S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.
