| Model NO.: | Cw-6100 |
|---|---|
| Packaging Qty: | Sets |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | S&a |
| Customization: | Available Customized Request |
|---|

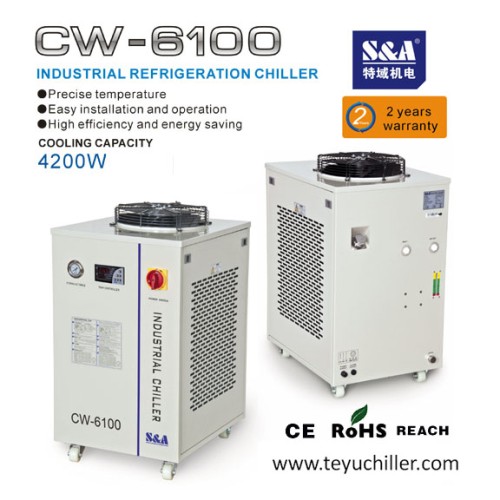

S&A industrial chiller for Roll to Roll UV printer Industrial chiller unit CW-6100 is developed and produced by S&A supplier of China, it is fit for cooling 2.5KW-3.6KW UV-LED source. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; CW-6100 water chiller parameter: Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L Max. lift:12M/25M/28~53M; Max. flow: 13L/min- 70L/min N.W: 65Kgs; G.W: 77Kgs; Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H) About S&A Brand S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in design and production. “S&A†and “TEYU†have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60% CONTACT S&A TE:+86-20-89301885 FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyuchiller.com Website: http://www.teyuchiller.com
