Product Description

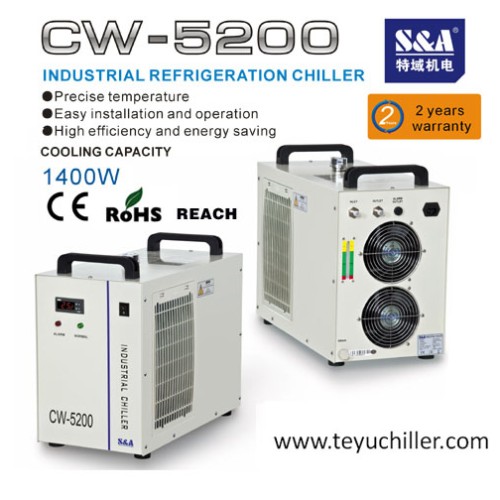

S&A chiller CW-5200 for medical laser systems S&A CW-5200 chiller is fit for cooling medical laser systems. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. S&A chillers have passed ISO, CE,RoHS and REACH approvals and the warranty is 2 years. Recirculating chiller CW-5200 specfications: CW-5200AG: applied to cool a single 130W CO2 laser tube CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes. CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube; Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter. Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L Max. lift:10M-25M; Max. flow: 10L/min- 16L/min N.W: 26Kgs; G.W: 29Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) About S&A Brand S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production. “S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%. CONTACT S&A TE:+86-20-89301885 FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyuchiller.com Website: http://www.teyuchiller.com
