| Model NO.: | Cw-5200 |
|---|---|
| Packaging Qty: | Sets |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | S&a |
| Customization: | Available Customized Request |
|---|

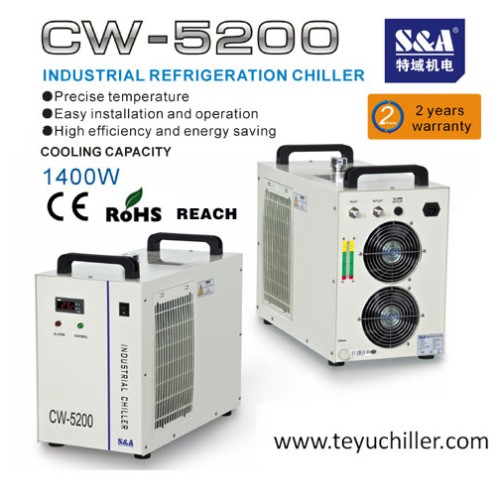

S&A re-circulating water cooler for UV lamps and the print surface S&A CW-5200 re-circulating water cooler is suitable to cool UV lamps of printer and developed and produced by S&A company of China. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. S&A chiller has passed CE，RoHS and REACH approval. Since January 2016, the warranty period of S&A chiller has extended to 2 years. CW-5200 water cooler parameter: Model CW-5200AG CW-5200BG CW-5200DG CW-5200TG CW-5200AH CW-5200AI CW-5200BI CW-5200DI Voltage 220V 220V 110V 220V 220V 220V 220V 110V Frequency 50Hz 60Hz 60Hz 50/60Hz 50Hz 50Hz 60Hz 60Hz Current 2.4~3.1A 2.6~3.3A 4.5~6.5A 2.4~3.3A 2.4~3.1A 2.4~3.1A 2.6~3.3A 4.5~6.5A Compressor power 0.52KW 0.5KW 0.68KW 0.49/0.57KW 0.52KW 0.52KW 0.5KW 0.68KW 0.71HP 0.68HP 0.93HP 0.66/0.77HP 0.71HP 0.71HP 0.68HP 0.93HP Refrigeration capacity 5084Btu/h 4982Btu/h 5186Btu/h 4825/5797Btu/h 5084Btu/h 5084Btu/h 4982Btu/h 5186Btu/h 1.49KW 1.46KW 1.56KW 1.41/1.70KW 1.49KW 1.49KW 1.46KW 1.56KW 1281Kcal/h 1256Kcal/h 1307Kcal/h 1219/1465Kcal/h 1281Kcal/h 1281Kcal/h 1256Kcal/h 1307Kcal/h Refrigerant R-22 / R-134a / R-410a Refrigerant charge 360g 380g 350g 360/380g 360g 360g 380g 350g Precision ±0.3℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.03KW 0.05KW 0.1KW Tank capacity 6L Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector Max. lift 10 M 12M 25M Max. flow 10 L/min 13L/min 16 L/min N.W 26 Kgs G.W 29 Kgs Dimension 58 X 29 X 47 cm (L X W X H) Package dimension 70 X 43 X 58 cm (L X W X H) CONTACT S&A TEL:+86-20-89301885, FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn Website: http://www.teyuchiller.com About S&A Brand S&A produces more than 60000 units of industrial chillers by year, we always insist on “Quality First†in design and production. “S&A†and “TEYU†have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
