Product Description

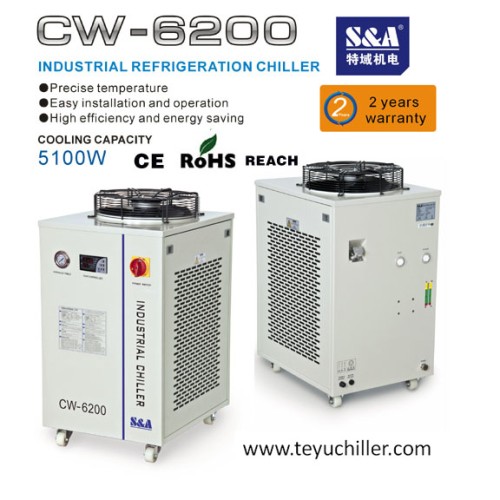

S&A brand CNC Spindle chiller CW-6200 Water chiller CW-6200 is developed and produced by S&A company of China. It is fit for cooling CNC spindle and has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Since January 2016, the warranty period of S&A chiller has extended to 2 years. Chillers CW-6200 parameter: Model CW-6200AH CW-6200BH CW-6200AI CW-6200BI CW-6200AN CW-6200BN Voltage 220V 220V 220V 220V 220V 220V Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz Current 1~8.2A 1~8A 1.5~8.7A 1.5~8.5A 2~9.2A 2~9A Compressor power 1.68KW 1.645KW 1.68KW 1.645KW 1.68KW 1.645KW 2.28HP 2.24HP 2.28HP 2.24HP 2.28HP 2.24HP Refrigeration capacity 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h 5.13KW 5.17KW 5.13KW 5.17KW 5.13KW 5.17KW 4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h Refrigerant R-22/R-410a Refrigerant charge 1100g 1200g 1100g 1200g 1100g 1200g Precision ±0.5℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.05KW 0.1KW 0.37~0.75KW Tank capacity 15L Inlet and outlet Rp1/2" Max. lift 12M 25M 28~53M Max. flow 13L/min 16L/min 70L/min N.W 69Kgs 82Kgs G.W 79Kgs 92Kgs Dimension 67 X 47 X 89 cm(L X W X H) Package dimension 74 X 60 X 109 cm(L X W X H) Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona . CONTACT S&A TEL:+86-20-89301885, FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn Website: http://www.teyuchiller.com
