Product Description
S&A water cooling chiller for 3.6KW-5KW UV LED curing system

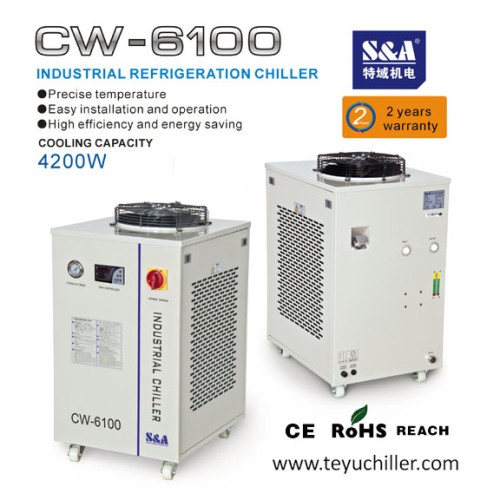

S&A water cooling chiller CW-6100 is developed and produced by S&A supplier of China. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
CW-6100 water chiller parameter:
Model CW-6100AH CW-6100BH CW-6100AI CW-6100BI CW-6100AN CW-6100BN
Voltage 220V 220V 220V 220V 220V 220V
Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Current 1~6.5A 1.5~7A 2~7.5A
Compressor power 1.38KW 1.29KW 1.38KW 1.29KW 1.38KW 1.29KW
1.84HP 1.72HP 1.84HP 1.72HP 1.84HP 1.72HP
Refrigeration capacity 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h
4.24KW 4.13KW 3.38KW 4.24KW 4.13KW 3.38KW
3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h
Refrigerant R-22/R-410a
Refrigerant charge 950g 900g 950g 900g 950g 900g
Precision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.05KW 0.1KW 0.37~0.75KW
Tank capacity 15L
Inlet and outlet Rp1/2"
Max. lift 12M 25M 28~53M
Max. flow 13L/min 16L/min 70L/min
N.W 65Kgs 77Kgs
G.W 75Kgs 87Kgs
Dimension 67 X 47 X 89 cm (L X W X H)
Package dimension 74X 60 X 109 cm (L X W X H)
Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona
