| Model NO.: | Tcb-2 |
|---|
| Customization: | Available Customized Request |
|---|

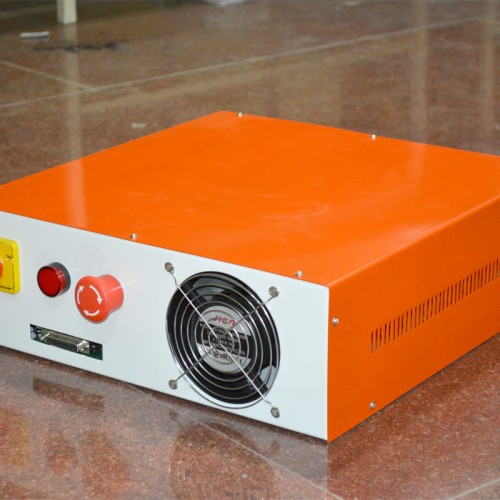

Specifications of CNC controller box: 1. TNC-M13 CNC Controller board for CNC machining with handheld pendant. 2. 3 stepper drives for 3 axes. Two options for stepper drives are available: a. Drive 087 generates 1.2-7.0 A phase current. b. Drive 484 generates 0.7-4.2 A phase current. 3. Power supply: Transformer + TL-PSB1 Linear power supply board. Following options are available for the transformers: a. Option 1: 42V, 10A Toroidal-CRGO transformer with transformer rating 300VA continuous. b. Option 2: 60V, 12.5A Toroidal-CRGO transformer with transformer rating 500VA continuous. 4. USB host port:USB 2.0 port. 5. Communication terminals: a. Serial terminal for pendant interfacing. b. Serial terminal (for PLC interfacing). 6. Operating interface: External connectors for connections. 7. Inputs Connectors: a. Home input connector: 1. b. Limit input connector: 1. c. Misc inputs (Tool Zero, Block mode, Start-stop, Hold resume) connector: 8.Outputs Connectors: a. Axes outputs connectors: 3. b. Spindle output (VFD output) connector: 1. 9. Coolants output: 1 10. 220V Power indicator: 1. 11. Emergency switch: 1 12. Supply voltage: 220V. 13. Fuse: 2A. 14. Dimensions: 400x400x130 (in mm). 15. Weight: 15 kg approx.
