Product Description
General Specifications
Step Angle Accuracy : ±5% (full step, no load)
Resistance Accuracy : ±10%
Inductance Accuracy : ±20%
Temperature Rise : 80°C Max.(rated current, 2 phase on)
Ambient Temperature : -20°C ~ +50°C
Insulation Resistance : 100 M O Min. ,500V DC
Dielectric Strength : 500V AC for one minute
Shaft Radial Play : 0.02 Max. (450 g-load)
Shaft Axial Play : 0.08 Max. (4200 N (20 mm from the Flange ) 50 g-load)
Max. radial force : 60 N
Visit to http://www.tinycontrols.com/stepper-motor.html for more details.
Specifications

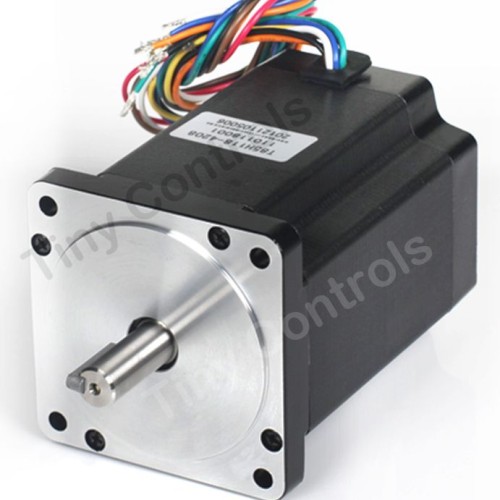

Series Model : T85H118-4208
Motor Length : 118 mm
Ph. Current : 4.2 A
Ph. Res. (Ohm) : 0.9
Ph. Inductance : 6.0 mH
Holding Torque : 87 Kg-cm
Detent Torque : 2.4 kg-cm
Rotor Inertia : 2700 g-cm2
Lead Wires : 8
