Product Description
Specifications

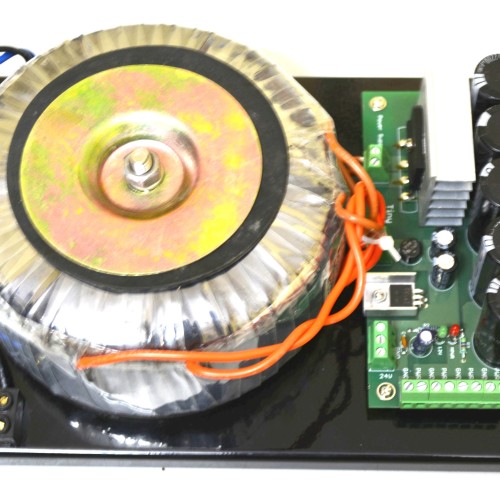

Transformer Type : Toroidal-CRGO
Model : TL-300-1
Output - 1 (unregulated) : 42V (10A)
Capacitor at output - 1 : 11,000 uF / 100V DC
Terminals for output - 1 : 4
Output - 2 (unregulated) : 24 V (800mA)
Output - 3 (regulated) : 12V (800mA)
Max combined current from (output2 + output3) : 1A
Terminals for outputs - 2,3 : 1 each with common GND
Total transformer Rating : 300 VA continuous
Weight (approx) : 6 Kg
