Product Description

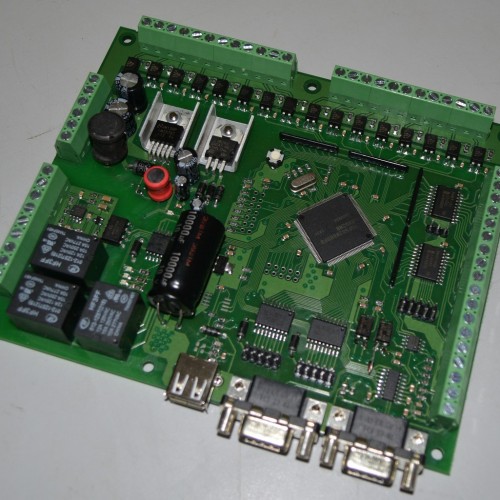

"CNC Motion Controller is a G-code programmable controller with Step and Direction outputs for stepper drivers. The three axes X, Y and Z are linear whereas the 4th axis is rotary axis and can be configured as either A, B or C axis. A “Y-Slave” output is also included in the system, enhancing the flexibility. The 4th axis can be disabled. The entire four axes can be configured with independent adjustable maximum velocity and acceleration. Moreover, an isolated analog 0-10V output for VFD is also provided on board for spindle controlling operations. Features: 1. Totally independent single board solution. 2. 32 digital+ 2 analog+ 1 isolated analog+ 3 relay outputs. 3. 19 isolated inputs. 4. Low jitter 150 KHz pulse rate on each axis. 5. Constant velocity (with look ahead) and exact stop path modes. 6. Supports Linear, arc and Helical interpolation. 7. Work offset (work coordinates). 8. Feed override option (Feed and Spindle speed). 10. Tool Offset option (Auto tool offset measurement). 11. Jogging via inbuilt keypad (Step, continuous and fast mode). 12. Feed Hold (Pause), cycle start (and cycle resume), cycle stop (abort). 13. Home and limit inputs for all axes (can be individually enabled/ disabled). 14. Block execution mode (menu/ run time control). 15. Controlled feed hold with deceleration to ensure no skipped steps and loss of location. 16. G-code “check” option (Dry Run) and program limit check function. 17. Screw terminal connectors for connecting motor drive, inputs and outputs. 18. Help menu handy for first time users. 19. Handheld pendant to display status/ settings and control the machine. 20. Intuitive menus and smooth navigation. 21. Inputs for limit and home switches (or sensors). 22. Emergency stop switch on handheld unit. Open Link http://www.tinycontrols.com/datasheets/TNC-M14-CNC-Controller-v1.1.pdf for complete details."
