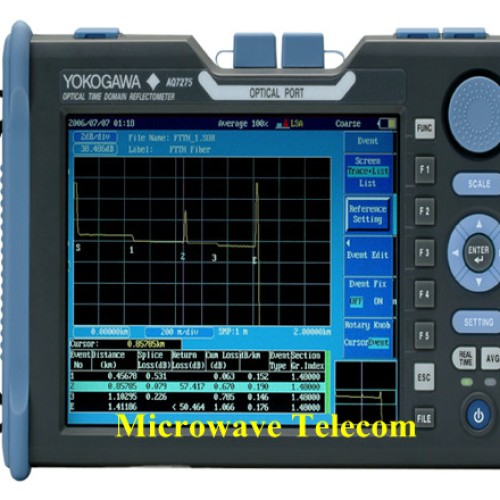

Product Description

Features:The world’s shortest dead zone, less than 0.8m(2.7ft)Supporting FTTH to core networks Multiple functions: optical monitor, light source, built-in printer, built-in dummy fiber Large and bright 8.4inch LCD on a lightweight, compact and solid bodyLess than 10 second power-up time Specifications Applicable Fiber No. of Wavelengths Wavelength Dynamic Range Model Descriptions SMF 1 1650nm 30dB 735031 1650nm model, supporting maintenance wavelength of 1650nm including1310/1550nm cut filter. 2 1310/1550nm 34/32dB 735032 Standard model for installation and maintenance of FTTH 2 1310/1550nm 40/38dB 735033 Standard model for installation and maintenance of Metro and Access network 2 1310/1550nm 43/41dB 45/43dB(typ.) 735034 High dynamic range model for installation and maintenance of Core and Metro network 3 1310/1490/1550nm 34/30/32dB 735035 3-wavelength model for PON system, supporting 1490nm 3 1310/1550/1625nm 40/38/33dB 735036 3-wavelength model, supporting a maintenance wavelength of 1625nm including 1310/1550nm cut filter 3 1310/1550/1650nm 40/38/30dB 735037 3-wavelength model, supporting a maintenance wavelength of 1650nm including 1310/1550nm cut filter. 3 1310/1550/1625nm 40/38/36dB 735038 3-wavelength model, supporting a maintenance wavelength of 1625nm　 MMF 4 850/1300 nm1310/1550 nm 22.5/24 dB(62.5GI) 21/22.5dB(50GI)40/38 dB(SM) 735041 4-wavelength model for installation and maintenance of LAN and FTTH with support for both multimode and single mode fiber. Dynamic range is specified when measuring 50GI fiber. Standard Package: NO. Name Quantity 1 Power line 1 2 AC/DC adapter 1 3 Bag 1 4 User manual 1 5 Trace analyzing software(CD) 1 6 Hard Carrying case(Including gallus) 1 7 Special gallus of instrument 1 Note:For the necessity of improvement, the material contained in this document is subject to change without notice.
