Product Description

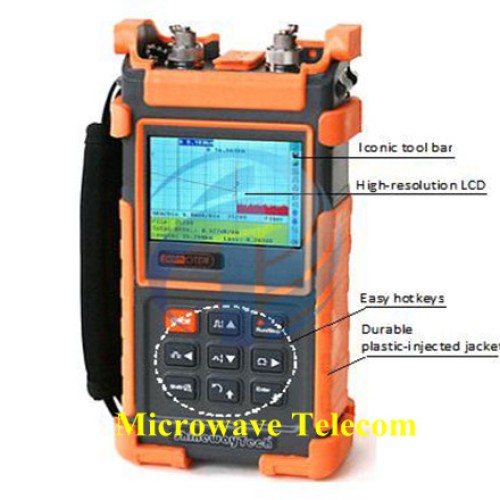

Features · Comprehensive fiber applications, ideal for LAN/WAN/FTTx certification & trouble-shooting: SM: 1310/1490/1550, 1625/1650nm (Live), up to 45dB; MM: 850/1300nm, 21/24dB.· Fault locating, fiber length/loss measurement, connector/splice/splitter/macrobend/fiber-end detection.· Built-in PON Power Meter for Triple-play live measurement· Optional Laser Source, SM/MM Power Meter and VFL   · FTTx in-service testing/Testing through ≥1×64 splitter: (1625/1650nm with filter) · Splitter & fiber-end identifiable · Auto/Manual(2-point/5-point)/Averaging/Real-time test · Pass/Fail assessment and ORL test function · Quick start: <5 seconds· Perfect user interface, handheld & lightweight (1kg) · Hotkeys: Easiest operation in the world, push-and-test· 1000 test records storage · Bellcore file format (.sor)· PC software for batch data processing· RS232/USB data interface· USB/RS-232 data interface, driver-free · Multilanguage: EN/DE/IT/FR/ES/PT/RU/KR/CN etc. · 8 hours continuous operation/20 hours standby · Dust-shock proof (2m drop test) · CE, FCC, FDA certificates The compact palmOTDR now offers even more testing capacities, flexibility and value with combination of 850/1300/1310/1490/1550/1625/1650nm(Mono/double/triple wavelength)OTDR, 1310/1490/1550nm PON Power Meter, Stabilized Laser Source and VFL. The OTDR wavelengths cover the applications of regular end-to-end fiber characterization (1310/1550nm), premise/enterprise LAN testing (850/1300nm), FTTx fiber link construction verification (1490nm) and PON live fiber troubleshooting (1625/1650nm with filter). The integrated PON Power Meter can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network featuring pass-through design and burst mode support. palmOTDR is your ultimate solution to meet various testing requirements of entire fiber network.
