Product Description

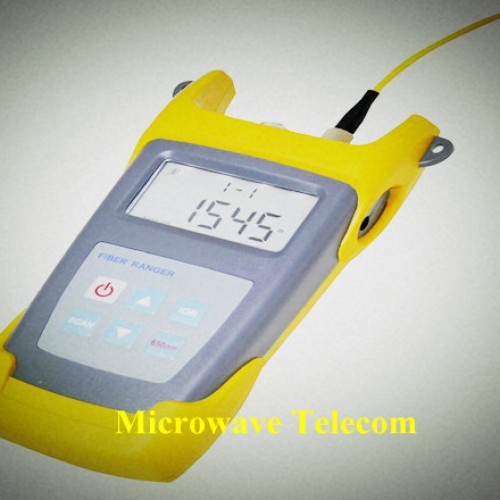

M-530 Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the M-530 fiber ranger detect fiber faults location more accurate and easy.Main Features Portable, rugged, lightweight; Easy to use More accurate testing result and better repeatability Up to 8 fiber faults can be detected in each measurement Automatic Pulse Width Control design to ensure a convenient operation Easy to identify the faults location Built-in visual fault locator (VFL), conveniently to find the faults in dead zone Dust, water and shock proof, designed for field use Long battery life, up to 5000 measurements operationApplications Testing the distance of the fiber and identify the faults location in the fiber link Locates reflective and non-reflective breaks in the fiber network. Inspection of fiber repair and maintenance.
Specifications
Model M-530
Operating Wavelength 1550nm(1310nm Optional)
Fiber Type 9/125um SM Fiber
Optical Connector Type FC/PC
Detector Type InGaAs
Peak Power of laser ≥60mW
Max. Displaying Distance Reflection Event 60km (≥1dB)
Non-reflection Event 20km (≥2.5dB)
Measurement Unit m
Reflection Event Dead Zone 15m
Distance Accuracy(Reflection Event) ±(2m+2*10(-3)*Distance)
Wavelength of VFL Option 650nm
Output Power of VFL Option ≥1mW
Power Supply Alkaline Battery (3pcs AA 4.5V Batteries)
Battery Operating Time ≥5000 measurements
Working Temperature -5~40℃
Storage Temperature -10~60℃
Humidity 0~85%(Non-condensation)
Dimensions 190*100*50mm
Weight(g) 450
