| Model NO.: | Av6416 |
|---|---|
| Min. Order (MOQ): | 1 unit |
| Manufacure Name: | Microwavetelecom |
| Customization: | Available Customized Request |
|---|

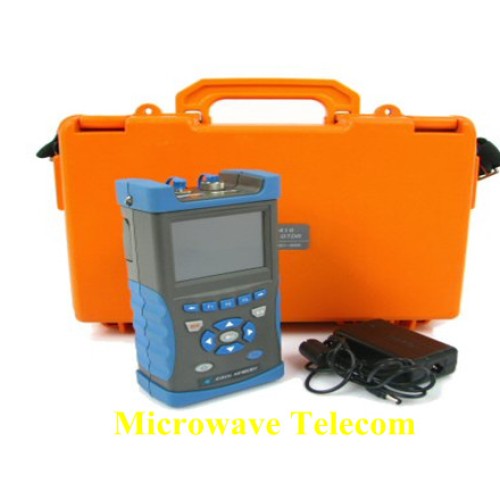

AV6416 palm OTDR is the newest instrument designed for testing FTTx network. It's mainly used to measure the physical characteristics of optical fiber under test, such as the lengthã€the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It's widely applied in the manufacture, construction and maintenance in optical fiber communication system. AV6416 palm OTDR is novel and beautiful in appearance. AV6416 offers three wavelengths and VLF in one handheld unit, especially for testing passive optical network (PON) in FTTx. In addition. Mainly features:   ♦ handheldã€lightweight and convenience for carrying   ♦ Advanced anti-reflective TFT LCD,visible clearly in field   ♦ 1.6m extra-short event dead zone   ♦ 0.25m high resolution, 65535 sampling points   ♦ Fast auto measurement,one-button operating  ♦ Double USB interfaces, supporting USB stick and direct cable download to PC via ActiveSync   ♦ Supporting Bellcore GR196 file format in writing or reading   ♦ Indicating remaining capacity of battery and warning if the voltage of battery is low.   ♦ WinCE operation system, double operating interface of Chinese and English   ♦ Built-in lithium battery with high capacity for over 10 hours of operating life   ♦ Visible fault locating (VFL)   ♦ Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning   ♦ Unique function of updating system on-line, returning to factory is unnecessary.
