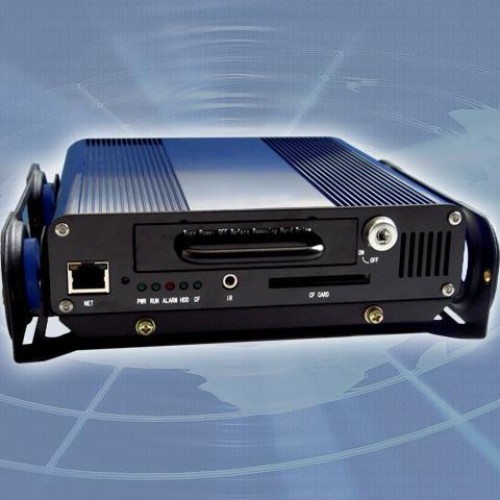

Product Description

Feature 1)Video and audio MPEG2 algorithm for video compression, high resolution, real time recording. 2)DVD (704x576) image quality for one channel recording, CIF(352x288)for 4 channels recording. 3)Support 4 channels video (maximum) and two channels audio real time recording Power supply 4)Support wide range of voltage input, allow DC 8V to 32V input for normal working. So car with 12V or 24V power supply is applicable 5)When the power input connects in reverse polarity, the auto-protect function can prevent the recorder and battery from damage. 6)The recorder provides each camera with stable 12V DC power, which can send out alarm when the power output is in short circuit. 7)Time Scheduled Power On and Off function can save power from the battery. 8)Can turn on and off by car ignition switch, Shut down delay (0~60 minutes adjustable) recording function Recording mode 9)Continue record Auto-record while turning on. Support time schedule recording Support alarm trigger recording, can set as auto-record while opening the door. 10)Support motion detection recording Shock proof design Suspending shock proof mode for HDD protection; 12)High Reliability Removable HDD Rack connector, can make sure of stabilization and avoid the problem of normal HDD Rack connector by using dot touch connecting mode; HDD 1)Removable HDD box supports 2.5 inch notebook HDD; 2)HDD can be compatible for FAT32 format, Enabling the data in HDD can be read directly by PC with Microsoft Windows OS; 3)Multi-backup and auto correction file system can avoid file lose problem due to the 0 track or file list damage in many case. Speed and Marching status recording Synchronously display and record the speed and vehicle ID; 4)6 channels sensor signal input, can synchronously display and record the vehicle status such as brake, turning left or right, alarm whistling etc. 5)Over-speed alarm function available; 6)Reverse signal trigger video switch function available. GPS INFORMATION PROCESSING AND RECORDING WITH VIDEO Specifications power input DC8V~32V power output DC12V,maximum DC output 1A video input 1 channel,1.0Vp-p,75O,BNC(2 and 4 channels optional) video output 1 channel,1.0Vp-p,75O,BNC TV system PAL/NTSC, User adjustable audio input 2 channel linear input audio output 2 channel linear output Compression tech MPEG2 Image quality Maximum resolution:704×576,frame rate: 25FPS(PAL), 30FPS(NTSC) HDD support notebook PC HDD (2.5 inch) alarm input 4 channels alarm input alarm output 2 channels alarm output network 10/100M Base-T,RJ45,Ethernet port GPS NMEA 0183 PTZ control RS485 language English size 180mm(Depth)×180mm(Wide)×42mm(height) weight 2.5kg temperature working temperature:0?~+60?,humitty:<90%
