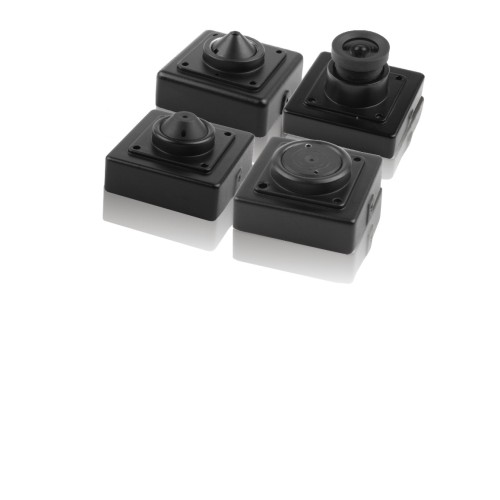

| Model NO.: | Mini 550tvl ccd camera40813 |
|---|---|
| Packaging Qty: | 1pc/gift box, 100pcs/ctn.gross weight:110g/ mini camera above (with av cable,bracket) |
| Manufacure Name: | Shenzhen beyond tech co.,ltd. |
| Customization: | Available Customized Request |
|---|
Model AD-136CHEX Image Device 1/3 Sony CCD,color Minimum Illumination 0.01Lux Horizontal Resolution 550TV Lines Dimension 34*34mm Built-In Lens Standard: 3.6mm board lens; Option:2.5,6,8,12mm Number of Pixels PAL:(H)768x(V)582 / NTSC:(H)778x(V)492 Scanning System PAL / NTSC Sync System Internal Synchronization Video Output 1Vp-p 75&brkbar;¸ Negative White Balance Auto A.G.C Auto B.L.C. Auto S/N Ratio More than 48dB Gamma Characteristic 0.45 Electronic Shutter PAL:1/50~1/100,000s ; NTSC:1/60~1/100,000s Power Consumption 12V+_10%DC,75mA Operation Temperature -10¡ãC~+50¡ãC Storage Temperature -20¡ãC~+60¡ãC Weight 30g
