| Model NO.: | Welding manipulator86068 |
|---|---|
| Min. Order (MOQ): | 1 |
| Customization: | Available Customized Request |
|---|

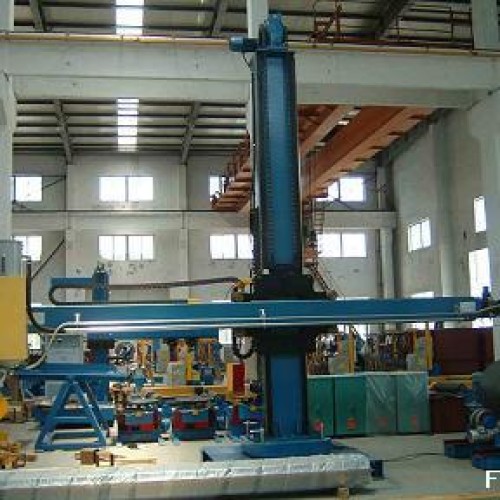

The welding manipulator is broadly applied in the industry of boiler, pressure-vessel, pipe and steel structure. FMC provide light duty and heavy duty welding manipulator to suit different production requirements. The machine is composed with host machine, flex arm, welding unit, rails and control system. Welding unit is equipped with inching switch to adjust the welding line position. The chain anti-rupturing device& anti-gliding device ensure the stable operation. The machine can also combine with Turning Rollers, Positioner, or Tilter for welding Large Dia. Tanks. Machine can be equipped with Welding Tracer, Monitoring System, and Welding Flux Automatic Recycle System. Main Characters: 1. Structure : stationary ,stationary and revolve ,moving and revolve 2. Cross-section of boom and column is calculated scientifically . Drooping of boom along horizontal travel is 2mm/m 3. Boom lifting device has anti-falling device , of ratchet struchet structure,safe and reliable . 4. Boom end has cross-slides ,which can be controlled thru manual pendant 5. Control roller has eccentric shaft ,which can decrease clearance between roller and rail 6. Columm revolve unit has motor-driven and manual drive 7. Control unit includes control and pendant ,interface with positioner and turning rolls also prepared Technical Data (Light Duty) Model QHJ1*1 QHJ2*2 QHJ3*3 QHJ4*4 Lifting stroke (mm) 1000 2000 3000 4000 Retracting stroke (mm) 1000 2000 3000 4000 Lifting speed (mm/min) 1000 Retracting speed (mm/min) 120-1200 Minimum distance between boom and track surface (mm) 740 (Movable with rotation) 690 (Stationary with rotation) Boom end Max. loading capacity (kg) 80 Column revolving Manual revolve then locked by screw Trolley traveling Manual push then locked by screw Inner span of trolley rail (mm) 1000 Technical Data (Heavy Duty) Model HJ4*4 HJ5*5 HJ6*6 HJ7*7 Lifting stroke (mm) 4000 5000 6000 7000 Retracting stroke (mm) 4000 5000 6000 7000 Lifting speed (mm/min) 1000 Retracting speed (mm/min) 120-1200 Minimum distance between boom and track surface (mm) 1110(Movable with rotation) 1180(Movable with rotation) 950(Stationary with rotation) 950(Stationary with rotation) Boom end Max. loading capacity (kg) 120 200 Column revolving Degree (º) ±180° speed (rpm) 0.36rpm/or by manual Trolley traveling (mm/min) 1700 2500 Inner span of trolley rail (mm) 1730 2000
