| Model NO.: | Cnc punching, marking, cutting machine for angle tal202013317 |
|---|---|
| Min. Order (MOQ): | 0 |
| Customization: | Available Customized Request |
|---|

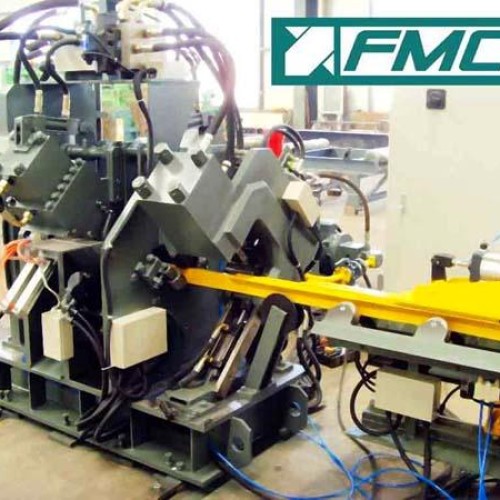

TAL2020 is a broadly used productive machine for processing angles from raw materials to finished products in one production run. It is designed for light Steel Tower structure fabricators. It is combined with CNC carriage for feeding, double punching station with 2 punching units each side, marking unit, double-blade cutting system and unloading unit. High speed processing and accurate position guarantee the machining quality and efficiency. TAL2020 can not only punch round holes on the steel angle, but also oval holes, which is mostly used for Telecommunication Tower fabricators. FMCSOFT, which locates in Microsoft Park, Qingdao city, designed specialized software for TAL2020, which can read (*.dxf drawings) and (X-Steel: *.dstv) directly, also support manual (increasement) input. Profile Specification Steel Angle Material (ASTM) Min. mm Max. mm A36 60 x 50 x 4mm 200x 200 x 20mm Grade 50 60 x 50 x 4mm 200 x 200 x 20mm Length of Angel Max. m 14 Punching Capacity Nominal Punching Force KN 950 Max. Punching Dia. MM F25.5 No. of punches per side No. 3 Marking Capacity Nominal Marking Force KN 540 or 1030 No. of Character Groups No. 4 No. of Characters per Group No. 10 Size of Character mm 14 x 10 Cutting Capacity Nominal Cutting Force KN 1540 Max. Cutting Thickness Mm 20
