| Model NO.: | Pdg165044878 |
|---|
| Customization: | Available Customized Request |
|---|

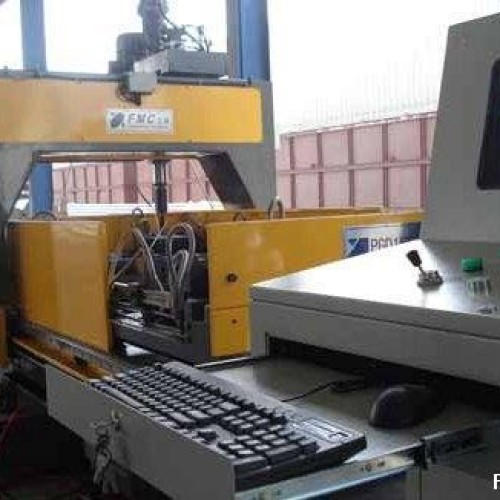

PDG1650 is a high-speed drilling system designed for processing pre-cut steel plates like, Splice plate, Flanges, etc.. There is an X-Y worktable with 4 working stations. The operator can load & unload workpiece from both sides of the worktable. Computer based control system can read Tekla drawings and Autocad drawings directly without mass manually inputting. Machine can process steel plate with different shapes.High positioning accuracy with numerical controller ensures reliable precise operation. Drilling of splice plates in pile ensures higher productivity. User can select H.S.S Drilling Spindle or Carbide Drilling Spindle equipped with the machine. Auto Chips-Removal device fixed on the machine provides easy chip disposal. Profile Specification Four Working Stations For one plate 2000 x 1000mm For two plates 1000 x 1000mm/each For four plates 1000 x 500mm/each Thickness 80mm Shape of workpiece Any shapes (with *.dxf and/or *.dstv drawings) Drilling Capacity Max. Drilling Dia (mm) ?50mm Drilling Spindle H.S.S. Drilling Spindle Rotating Speed (rpm) 120~560 Carbide Drilling Spindle Rotating Speed (rpm) 0 ~ 4000 Spindle Vertical Stroke 180 / 240 Feeding Speed (mm/min) 20~200 Clamping System Hydraulic Clamping System Clamps Thickness (mm) 15~80 Clamps Number 12 Clamping Force(KN/each) 7.5 Machine Info Total Weight (kg) 4000 Overall Dimension (L x W x H, mm) 5810 x 3660 x 2790mm
