| Model NO.: | Video profile projector maz64537 |
|---|
| Customization: | Available Customized Request |
|---|

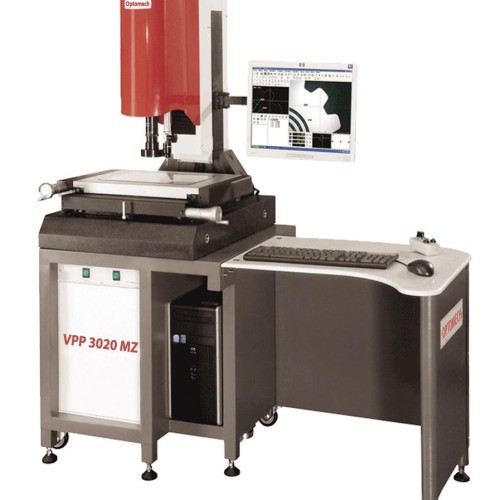

Optomech offer cost effective video measuring machines (VMM),to suit your budget and needs, all the models have a rigid and stable construction with granite base and column. The equipment is mounted on a ergonomically and aesthetically designed table. The VPP MAZ is a 3D video measuring machine, it comes standard with a high speed and highly accurate Vision Autofocus, it is convenient for applications such as focussing surface and edges of a workpiece, the autofocus along with a motorized Z axis movement also gives the machine very good height measuring capability. Precision working table and 0.001mm resolution optical scales installed in the X,Y,Z axis provide a measuring accuracy of (3+L/100)um. The powerful software allows users to export the measured results to CAD software such as AUTOCAD, MASTERCAM etc. The light controlling PCI card controls the intensity of surface and profile LED light sources. A SPC statistical analysis software is also included in the software package. All measured res
