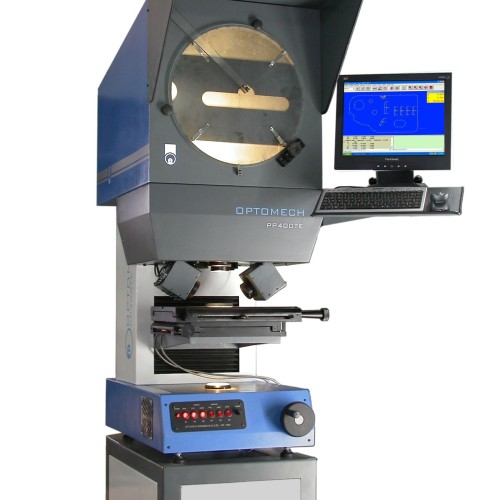

| Model NO.: | Profile projector 400te49363 |
|---|
| Customization: | Available Customized Request |
|---|
Screen Glass screen Glass screen Ø 400mm with crosslines Magnification 5x,10x,20x,50x,100x Telecentric Lenses Workstage * Size of Top Plate 350mm x 260mm * Measuring Traverse X:250mm, Y: 150mm * Working Area 255mm x 155mm * Load Capacity 255mm x 155mm * Max Diameter 175mm Digital Measuring Systems Angular 360º rotary encoder LC of 1 ' of an arc. With digital display Linear Computerised DRO System with Geometric Functions and Graphical User Interpface 15" LCD Monitor, keyboard and Mouse Illumination Systems Tungsten Halogen lamps Profile 24V, 150W Surface Illumination 24V, 150W - 2 Nos Weight 125 kg ( Unpacked) Dim (LxWxH) 900 x 520 x 1300
