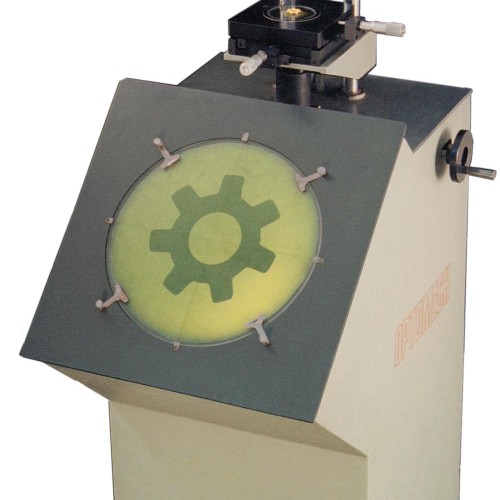

| Model NO.: | Profile projector 300v49361 |
|---|
| Customization: | Available Customized Request |
|---|
Screen Glass screen Ø 300mm with crosslines Magnification 10x, 20x, 50x Workstage * Size of Top Plate Sq. 145 mm * Measuring Traverse X:25 mm, Y:25mm * Working Area Ø 60 mm * Load Capacity 5 Kgs * Max Dia 60mm Measuring Systems Linear 0-25mm with L. C. 0.010 Angular 360º Graduated rotary screen with vernier Illumination Systems Tungsten Halogen lamps Profile 12V 50W Surface Illumination 12V 50W- 2 Nos. Power Supply 220V, 50Hz, 10A Weight 65 kg (Unpacked) Dim (LxWxH) 630 x 430 x 945
