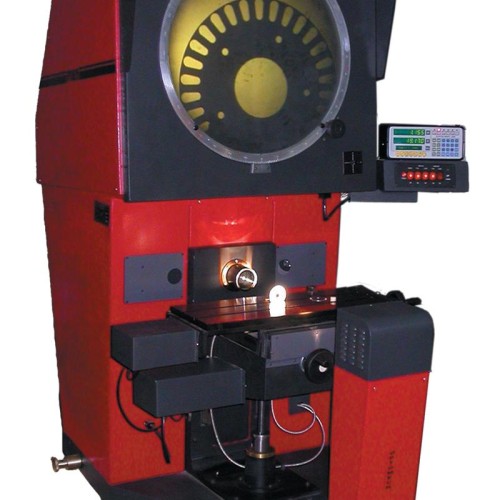

| Model NO.: | Profile projector 600h49364 |
|---|
| Customization: | Available Customized Request |
|---|
Screen Glass screen Ø 600mm with crosslines Magnification 5x, 10x, 20x, 50x, 100x Telecentric Lenses Workstage * Size of Top Plate 650mm x 230mm * Measuring Traverse X:300mm, Y: 200mm * Load Capacity 70 Kgs. * Max Diameter 220mm Digital Measuring Systems Linear 3 axis Simple DRO with Linear Encoders 0.005mm LC Angular 360º rotary encoder LC of 1' of an arc. With digital display Illumination Systems Tungsten Halogen lamps Profile 24V, 150W Surface Illumination 24V, 150W - 2 Nos. Power Supply 220V, 50Hz, 10A Weight 125 kg ( Unpacked) Dim (LxWxH) 1400 x 840 x 1800
