Product Description

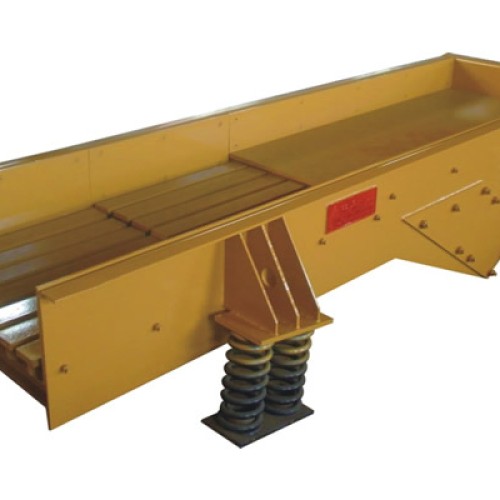

1. Brief introduction of Vibratory Feeder Vibrating Feeder is mainly used to feed materials evenly and continuously into belt conveyor, bucket elevator, screening and crushing equipment before primary crusher, also used for screening fine materials to increase the processing capacity of crusher. The feeding amount can be adjusted flexibly to achieve centralized control and automatic control in the production process. 2. Features of Vibratory Feeder 1. Stable vibration, reliable operation, low energy consumption and low noise. 2. The fence distance can be adjusted, special design of fence can prevent material blocking. Adjustable speed motor applies matched motor to control feeding capacity easily and avoid frequent motor re-start. 3. Technical parameters of Vibratory Feeder Model Funnel size (mm) Max. feed size(mm) Capacity (t/h) Power (KW) Weight (t) Overall dimension (L x W x H) ( mm) GZD-900×3800 900×3800 400 80-120 6 3.89 3900x1500x1200 GZD-950×3800 950×3800 500 120-210 6 3.98 3900×1600×1250 GZD-1100×4900 1100×4900 580 160-320 11 4.52 5000×1800×1500 GZD-1200×4900 1200×4900 650 200-430 15 5.2 5000×1900×1700 GZD-1300×6000 1300×6000 900 450-600 15 6.5 6150×1900×2100
