Product Description

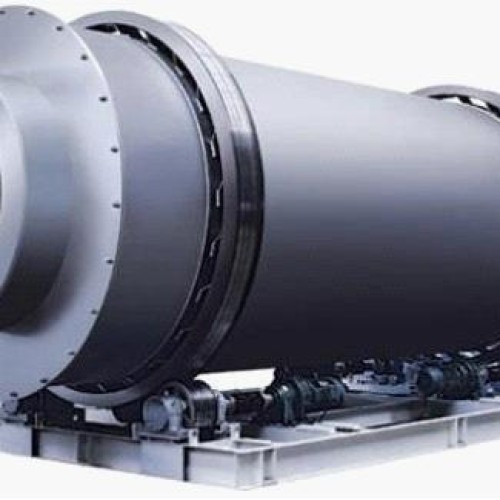

three cylinder dryer 1.Application: dry the materials such as ore slag, sand, coal, coal ash, iron power, ore ,quartz sand and so on 2. The main usage: Three cylinder dryer is mainly used for the drying of particle materials within a certain range of humidity, such as yellow sand used in dry mortar industry, various specifications of sand in foundry industry, blast furnace slag cement in building materials industry, small size clay, for chemicals no changes in chemical industry, the small granular materials that is not afraid of high temperature and dust. 3.The main features: 1.High technical content, self insulation cylinder body, 80% thermal efficiency (single- cylinder dryer is only 35%), coal saving is 68% than single-cylinder dryer and output increases 100% 2. The length is good for technical layout, 60% shorter than single-cylinder dryer. Also it’s about 20m³area, reducing plant area and saving 40% investment 3.adopt heat resistant and wear resistant steel plate, 4 times wear resistant than the general steel plate, long service time and convenient to maintain. 4. outside cylinder body temperature is below 60°(single cylinder temperature is up to 150°), with low outlet temperature. 5.low outlet temperature is good for keeping long service life. 6.electic consumption reduce 60% 7.adopt roller rotation, without large and small gear 8. hot air stove can support fluidized bed furnace, spray stove, hands burned furnace,applied to below 20mm materials such as lump material, granuler and power materials. 9. output:5-200t/h various specification
