Product Description

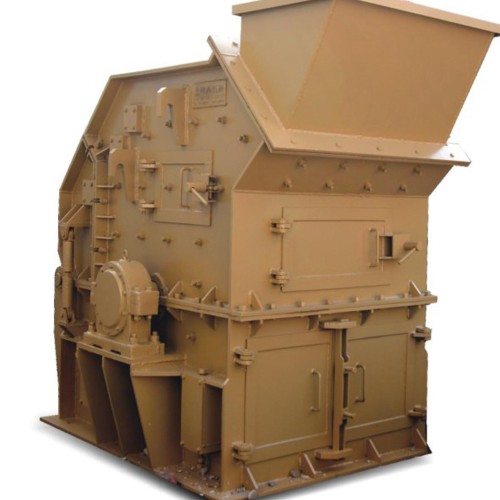

Professional Fine Impact Crushing Machine 1) Application of Professional Fine Impact Crushing Machine Professional fine impact crushing machine is mainly used to crush many kinds of large,medium,small materials whose side length is less than 500mm,and compression resistance should not be more than 350Mpa.The fine impact crushing machine is widely used in hydroeletricity,highway,artificial stone and sand,building material,etc. 2) Working Principle of Professional Fine Impact Crushing Machine When the fine impact crushing machine works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher. 3) Characteristics of Professional Fine Impact Crushing Machine: 1. Special structure, 2. Connected without key, 3. High chrome hammer, unique impact liner, deal with hard material, 4. High efficiency and save energy, 5. Cubic shape of product, 6. Adjustable output size. 4) Technical Data of Professional Fine Impact Crushing Machine: Name of equipment Technical Parameter: Model 800x800 Roto Parameter Diameter(mm) 800 Length (mm) 800 Main material Q235 Steel plate thickness 16mm Inner plate Material ZGMn13 thickness(mm) 40 Hammer Material High chromium alloy Quantity 24 Main shaft material 40Cr Engine Model Y225M-4 Power(kw) 45 Speed(r/min) 1400 Voltage(V) 380V 50Hz Engine protection level IP54 Manufacturer Weihai Hengda Engine Manufacturing Factory Pulley material HT200 Shape of Groove D Weight(T) 7.8 Speed of Roto(r/min) 1097 Inlet size(mm) ≤150 Outlet size(mm) 0-10 Capacity(t/h) 35-65
