Product Description

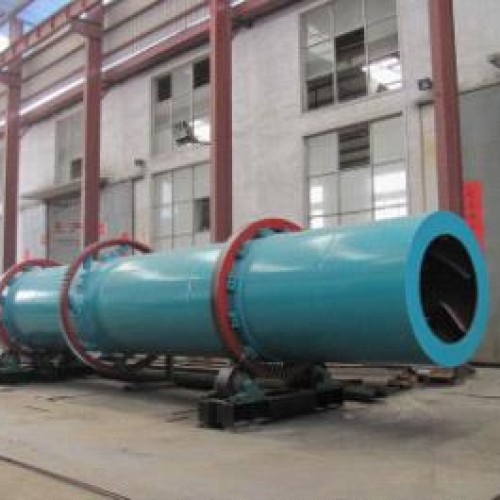

1. Brief introduction of Rotary Dryer Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated. 2. Working principle of Rotary Dryer Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved. 3. Technical parameters of of Rotary Dryer Model shell diameter (mm) Shell length (mm) Slope (°) rotary speed (r/m) Weight (t) Power (KW) Volume (m³) Φ0.6×8 600 8000 3-5 8 5.1 6-4 2.26 Φ0.8×10 800 10000 3-5 7.2 6.9 6-4 5.02 Φ1.0×10 1000 10000 3-5 6.73 7.5 6-5.5 7.85 Φ1.2×12 1200 12000 3-5 5.8 13.1 6-11 13.31 Φ1.5×12 1500 12000 3-5 4.8 22.3 6-15 21.2 Φ2.2×14 2200 14000 3-5 3.2 52.8 30 53.22 Φ2.4×18 2400 18000 3-5 3 73.3 37 81.43 Φ2.8×24 2800 24000 3-5 2.59 97 75 147.8
