Product Description

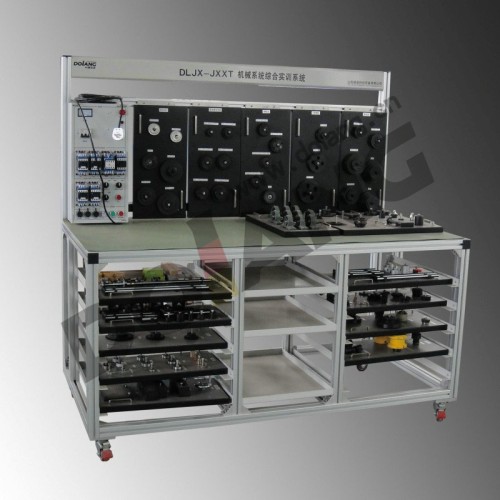

Specifications This system is for colleges, vocational schools, vocational education and training institutions developed industrial maintenance Mechanical System Comprehensive Training System DLJX-JXXT 1, The main technical performance 1, The input power supply: Single-phase three-wire AC220V ± 10% 50Hz 2, The working environment: Temperature -10 ° C to 40 ° C Relative humidity ≤ 85% (25 ° C) Height ≤ 4000m 3. Dimensions: 1845mm x 690mm x 1770m 4. Security: Drain voltage, leakage current protection, security in line with national standards 2. Training project Speed and torque measurement Mechanical efficiency Shaft and seat belt bearing Shaft and flexible coupling Flat belt installation and tensioning Flat pulley installation and adjustment Belt drive speed, torque, and the transmission ratio Chain and sprocket installation and tension adjustment Chain drive speed, torque, and the transmission ratio Gear installation and adjustment, gear speed, torque and gear ratio, gear sets V-belt and jagged edges of the belt, ribbed belt drives Ordinary timing belt and high torque synchronous belt drive Multi-row roller chains and tooth chain drive sprocket idler Flange couplings, gear coupling, chain coupling and Grid Couplings, Universal coupling Dial indicator use With seat bearing lubrication, chain lubrication Oblique spur gear Worm gear Gear box Slide to bearings, deep groove ball bearings, angular contact ball bearing Roller, roller bearings Bearing lubrication, gaskets, O-rings, lip seals, mechanical seals One-way roller clutch Torque limiter Electromagnetic clutch Electromagnetic brake Ball screw, ball screw lead and the transmission ratio The use of linear bearings Use and vibration analysis adjustment of measured vibration meter 3. Factory: Our factory located in Pioneering park overseas Chinese Scholars Jinan city, Shandong Province. We have very strong technical teams with more than 40 engineers and experienced workers. Our products have exported for more than 7 years. 4. Product range: 1) Electrical technology Know-how Training Set 2) Innovative E-skills &Technology Training Series 3) MCU Technology Training Series 4) Machine Tools Electrical Control Training Series 5) Machine Tools Electrical Control Training Series(Model-type) 6) CNC Machine Tools Maintainance Training Series(Model-type) 7) Building Automatic Training Series 8) PC Training Series 9) Innovative industrial Automatic Control Technology Training Series 10) Pneumatic Training Series 11) Hydraulic Training Series 12) Sensor Training Series 13) Motor Training Series 14) Mechatronic Training Series 15) MPS Training Series 16) FMS Training Series 17) Mechanical Training Series 18) Engrave Machine Series 19) Automotive training series 5. Packaging And Delivery Details: Packaging Detail: 1). Packaging for training kit: Plastic package + carton + plywood pallets 2). Packaging for training equipment: Plastic package + plywood pallet Delivery Detail: 40 to 50 days after Received advanced payment. 6. After-Service And Training for Foreign User 1) For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it. 2) We dispatch our professional and experienced engineer to install equipments and make training for the end users.
