Product Description

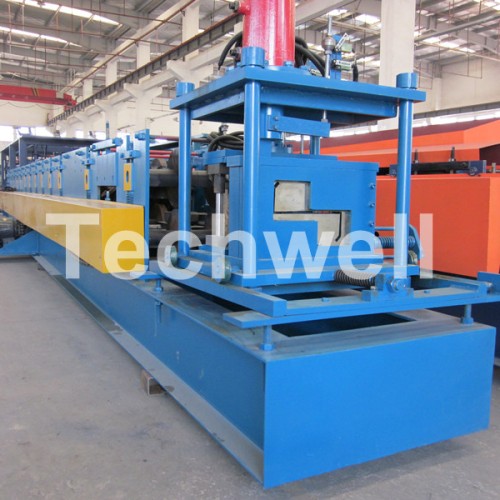

1) TW8004-A Z Shaped Purlin Roll Forming Machine, Z purlin Roll Forming Machine,Z Shape Roll Forming Machine,Z Section Roll Forming Machine,Z Profile Roll Formig Machine
2) Z shape purlin roll forming machine is comprised of 5T manual uncoiler, infeed guides &Levelling roll, punch stations, main roll forming machine, cutting equipment, main drive, control cabinet, output table.
3)Technical Parameter:
1. Size of sheet (mm): 100-300mm (also can depend on client request)
2. Working speed: 12-15m/min(not including cutting time)
3. Roll station: 25 stations (7 station is for leveling)
4. Material of rolls: 45, HRC58-62, polished and coated with chrome
5. Headstock: High quality 45 high carbon steel, 85mm
6. Main power: 18.5 kw
7. Hydraulic station motor power: 5.5kw
8. Hydraulic pressure: 20Mpa
9. Electrical control system: PLC control OMRON Panasonic
10. Dimension of the body machine: : 14000x1400x1000mm
11. Material of cutting: Cr12Mov
12. Thickness: 1.5mm---3mm
13. Tolerance of length: 3m 1.5mm
14. Way of moving: Single link 1.2 inch
15. Weight of machine: 10000KG
