Product Description

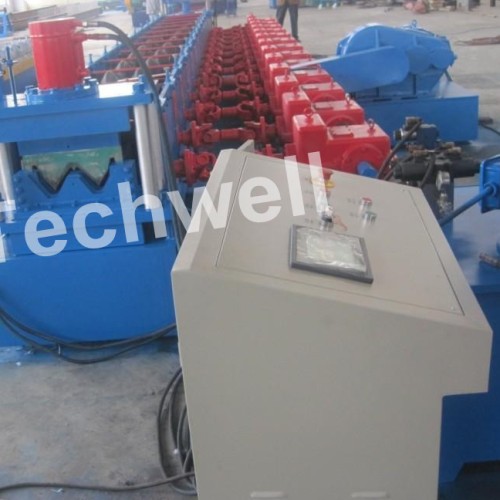

Machine: TW8001 Highway Guardrail roll forming machine, W Beam Roll Forming Machine,Guardrail Roll Forming Machine, Crash Barrier Roll Forming Machine
Comprised of decoiler, levelling, punching system, coil feeding machine, guider, roll forming machine, cutting system, collecting platform and the PLC controlling system
Technical parameter:
1. Matching material: Feed width: 480mm, forming thickness(2.0-3.2mm), Q235 galvanized steel strip
2. Material thickness: 2-3.2mm
3. Main motor power for forming: 22kw
4. Forming speed: 10-12m/min
5. Hydraulic station power: 11 kw
6. Roll forming stations: About 17
7. Hydraulic pressure: 20 mpa
8. Controlling system: PLC
9. Total weight: About 25 Ton
Additional information:
Material of forming rollers: GCr15 bearing steel with quenched treatment
Material of cutter blade: Cr 12 mould steel with quenched treatment
Company Profile
| |
Business Type: |
Wuxi Techwell Roll Forming Machine Co.,Ltd mainly produce Roll Forming Machine, Sandwich Panel Machine, Roof tile machine, wall panel machine, C/Z Purlin machine, floor deck machine, guardrail machine,downpipe machine, channel machine, gutter machine... |
| |
Comapany: |
Wuxi techwell roll forming machine co.,ltd |
| |
Year of Establishment: |
2000 |
| |
Address: |
No. 16,JIngshi Rd |
| |
City: |
Wuxi |
| |
Zip/Postal: |
214046 |
| |
State: |
Jiangsu |
| |
Country: |
China |
Wuxi Techwell Machinery Manufacturing Co.,Ltd is engaged in the produce, design, adjustment and installation all kinds of Cold Roll Forming Machine, Sandwich Panel Machine and Slitting & Cut to length Line in China. And we can produce portable gutter / downpipe machines, at present, in China, only our factory can produce portable machines.
Our Main Machine:
roll forming machine,roof tile forming machine,C/Z/U/W purlin forming machine, floor deck forming machine,guardrail forming machine,k span forming machine,gutter forming machine,downpipe forming machine,channel forming machine,double layer forming machine,door frame forming machine,sandwich panel machine, corrugated sheet forming machine,glazed tile forming machine,trapezoidal sheet forming machine,box beam forming machine,ibr sheet forming machine,bemo sheet forming machine,eps sandwich panel machine,pu sandwich panel machine, ridge cap forming machine,slitting machine,cut to length machine,roof curving machine,hydraulic decoiler,embossing machine…
--------------------------------------------------------------------------------------
