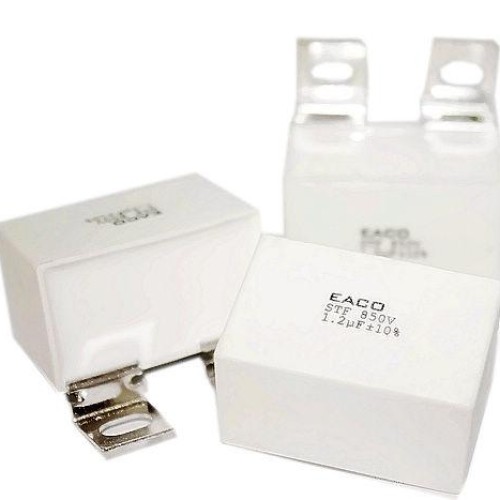

| Model NO.: | Snubber capacitor(stf)56349 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Eaco capacitor co.,ltd |
| Customization: | Available Customized Request |
|---|
General Technical Characteristics Dielectric: Polypropylene film Construction: Extended double side metallized carrier film with internal series connection and metallized film Coating: Solvent resistant plastic case with resin sealing. Flame retardant execution(UL94V-0) Lead: Tinned copper lugs for screw fixing or soldering on PCBS. Electrical Characteristics Operating temperature range(case):-40 to +80C Capacitance: 0.047 to 10uF Rated Voltage: 700 to 3000Vdc Tolerance: +-5%,+-10% Dissipation factor: Measured at 1000+-20Hz AND 25+-5C When Cr«1.0uF, 4*0.001 When Cr>1.0uF, 6*0.001 Life expectancy:100,000 hours at Ur and 70C Test Methods And Performances Dielectric strength: 2Ur(DC)applied for 10s at 25+-5C(1 minute for type test) Test voltage terminal to case: 3KV 50Hz for 60sec Insulation resistance: 30,000s but need not exceed 30GO(typical value), after 1 minute of electrification at 100Vdc(25+-5C)
