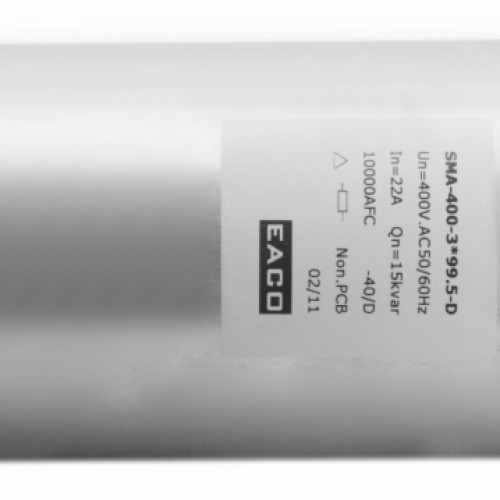

| Model NO.: | Ac filter capacitor(sma)5386 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Eaco capacitor co.,ltd |
| Customization: | Available Customized Request |
|---|
General Technical Characteristics Reference standards: IEC61071 610831 UL810 Dielectric: Polypropylene film, Self-healing technology Connection: Three-phase, delta connected Cooling: Naturally air cooled(or forced air cooling) Impregnation: Oil impregnated, Non-PCB Case: Extruded round aluminium can with stud, Indoor mounting Electrical Characteristics Operating temperature range(case): -40 to +85C Capacitance: 3*9 to 3*200uF Rated Voltage: 400 to 1200Vac Tolerance: +-5% Tan: 2.0*0.004 Dissipation factor: <2.0*0.01 Measured at 1000Hz AND 25C Life expectancy: 100, 000 hours at Un and 70C(Hot-spot temperature) Test Methods And Performances Test voltage between terminals: 2.15Urms/50Hz for 10s at 25C Test voltage terminal to case: 3500V. AC/ 50Hz for 10s at 25C Insulation resistance(C*Ri): >5000s
