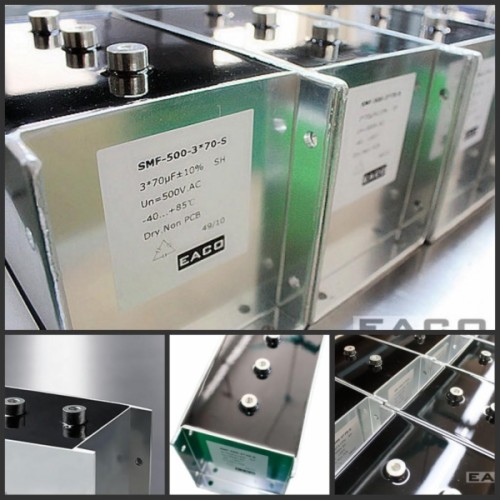

| Model NO.: | Film capacitor(smf)25256 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Eaco capacitor co.,ltd |
| Customization: | Available Customized Request |
|---|
1. GENERAL TECHNICAL CHARACTERISTICS Reference standards: IEC 61071-60068 Dielectric: Polypropylene film Construction: Dry construction, filled by solid resin, Non-inductive type Case: Aluminium case 2. ELECTRICAL CHARACTERISTICS Operating temperature range(case): - 40 to + 85 C Capacitance: 3 x 20 to 3 x 500µ F Rated Voltage: 400 to1000 Vac Tolerance: ± 5%, ± 10% Dissipation factor: = 2.0× 10-3 Measured at 1000 Hz and 25C Ls: <100nH Life ecpectancy: 30, 000 hours at Un and 70C 3. TEST METHODS AND PERFORMANCES Test voltage between terminals: 1.5xUn for 10s at 25 C Test voltage terminal to case: 3 KV 50Hz for 2sec Insulation resistance (C*Ri): = 5000 s
