| Model NO.: | Ht041 |
|---|---|
| Packaging Qty: | Negotiate |
| Min. Order (MOQ): | 10 square meters |
| Manufacure Name: | Huatao |
| Customization: | Available Customized Request |
|---|

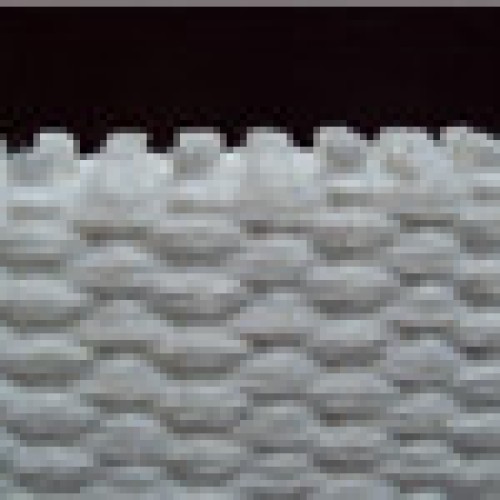

middle speed corrugator belt, corrugator belt, corrugator conveyor belt, middle speed corrugator conveyor belt Huatao Wire Belt Factory Tel: 86-311-80772027 Fax: 86-311-80690567 Skype: huatao04 E-mail:troy.l@huataogroup.com Huataogroup11@outlook.com Sale09@huataogroup.net Huatao Middle Speed corrugator Belt is 5 layer structure belt, made of the high grade PET continuous filament yarn with high tension and low flexibility.Our specifical structure design ensure the hydrophilic and drying ability. Each structure of the layer are the same, each layer has the same material, and the absorbent fiber is woven into the surface layer. The surface is straight line, This, in turn, guarantees correct gluing and fast drying of the board. Product Features: 1. Straight cut edge and long service life. 2. Level surface, clean mark. 3. Hot-press and flocking joint Specification: Product Model: middle speed corrugator belt Thickness: (10 ± 0.3）mm Width: 1000 - 2700 mm Heat-resistance: 200℃ Tensile strength: 63Mpa Coefficient of friction: ≥0.38µ Weight per unit: (7±0.3) kg/m2 Air-permeability: 120 m³ / m2h (1kpa)
