| Model NO.: | Hydraulic punching machine32090 |
|---|---|
| Packaging Qty: | Wood box |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Shunde kingtool |
| Customization: | Available Customized Request |
|---|

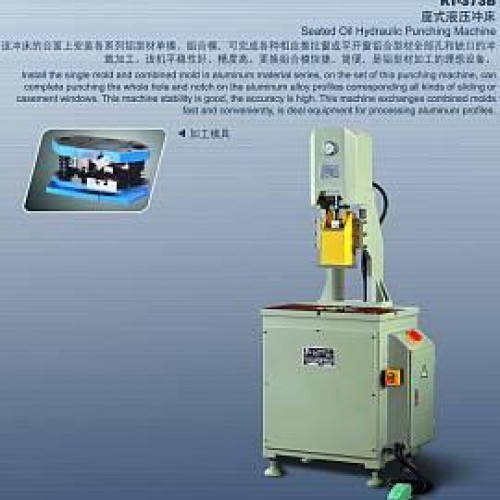

This machine is equipped with aluminum profile single mold and combination mold, capable of complete punch machining of all kinds of bores and slots of sliding window or casement window. The equilibrium of that machine is good, and the accuracy is high. It is easy to change the combination mold. It is the ideal equipment for aluminum window profile processing. MAIN TECHNIQUE PARAMETER 1.Punching thickness.....................1-2.5mm 2.Max. punching length...................4-8 pieces 3.Dffective worktable area (L*W).........720*330mm 4.Max. punching travel...................60mm 5.Oil cylinder diameter..................80mm 6.The piston travel of oil cylinder......60mm 7.The max. sealing height................240-300mm 8.Fuel tank capacity.....................40L 9.Motor power............................2.2KW 10.Rated pressure of oil pressure........16Mpa 11.Max. punching shearing force..........10000KG 12.Overall dimension (L*W*H).............720*450*1785mm 13.Weight................................300KG
