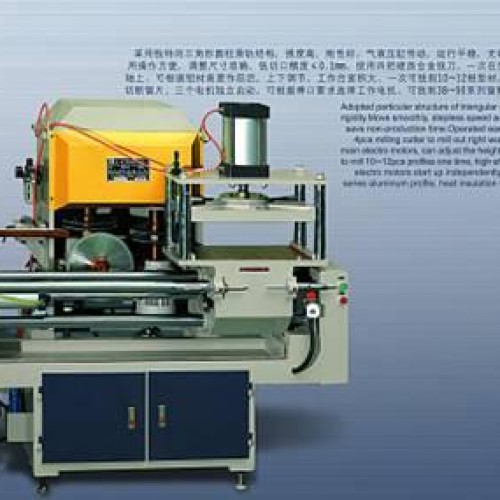

Product Description

1 Adopted particular structure of triangular cylindrical sliding track 2 Move smoothly, stepless speed adjusting available, no creeping, the blade retract quickly, save non-production time. 3 Operate easily, adjust size accurately, milling precision less than or equal to 0.1mm. 4 With 4 pieces of milling cutters to mill out right workpiece one time. 5 4 pieces of milling cutters are installed in axes of 3 main exectromotors, can adjust the height to fit for aluminum material. 6 The workbench is large enough to mill 10~12 pieces profiles one time, high efficiency. 7 Additionally can add one cutting blade as per the customer's request. 8 3 electromotors star up independently, could be selected as per workpieces' requirement. 9 38-90 series aluminum profile, heat insulation material and curtain wall profile could be milled. 10 Pneumatic spray mist blade lubrication coolant system. MAIN TECHNIQUE PARAMETER 1.Working air pressure.......................0.6~0.65Mpa 2.Air consumption............................200L/min 3.Power supply..............................380V/50Hz 4.Input power................................3*2.2KW 5.Milling cutter rotation speed..............2840r/min 6.Milling cutter dimension................D250 * D50 * 6.5mm 7.Worktable dimension (L*W)...................500*320mm 8.Milling travel.............................950mm 9.Overall dimension (L*W*H)...............2280*1040*1640mm 10.Weight...................................1300KG
