Product Description
ASTM B366 Inconel 625 Reducer | ASTM B366 Inconel Elbow | ASTM B366 Inconel LR Elbow | ASTM B366 Inconel SR Elbow | Pipe Elbows
A leading exporter, suppliers & stock holder of ASTM B366 Inconel 625 Reducer, we also stock Inconel, Monel, Hastelloy Pipes & Flanges.
ASTM B366 Inconel 625 Reducer suppliers and manufacturer in India, buy any quantity & size at factory rate
ASTM B366 Inconel 625 Reducer Specification
Nickel based alloys are very useful materials for the manufacture of high quality tubing products. One of the key reasons is that they offer excellent corrosion resistance in both aqueous and high temperature applications.
Product Name: ASTM B366 Inconel 625 Reducer
The wide range of Reducers offered by us is available in two different forms, one is concentric and another is eccentric types. These are developed using quality steel and other alloys and find usage in sugar mills & distilleries, pumps & petrochemicals cement & construction industries and steel plants. Our ASTM B366 Inconel 625 Reducer range is available in various sizes, schedules and flange configurations as per the requirements of the clients. The ASTM B366 Inconel 625 Reducer offered by us have inlet and outlet ends and they align to a common center line.
Function of both types of reducer is to reduce the line from a larger to a smaller pipe size, this obviously results in an increased flow pressure. With the eccentric reducer the smaller outlet end is off centre to the larger end enabling it to line up with one side of the inlet and with the other.
The concentric reducer is so manufactured that both inlet and outlet ends are on a common centre line. The concentric type is easier and less expensive to produce but does not allow quite the same versatility as the eccentric reducer. The lengths of both types are fixed by manufacturing standards.
We offer the international quality pipe reducers made up of steel and other alloys. Steel Pipe Reducers available are of concentric and eccentric types. The pipe reducers are suitable components in pipelines that reduce pipe size from large to small bores. The inlet and outlet ends of the steel pipe reducers and alloy pipe reducers align to a common center line.

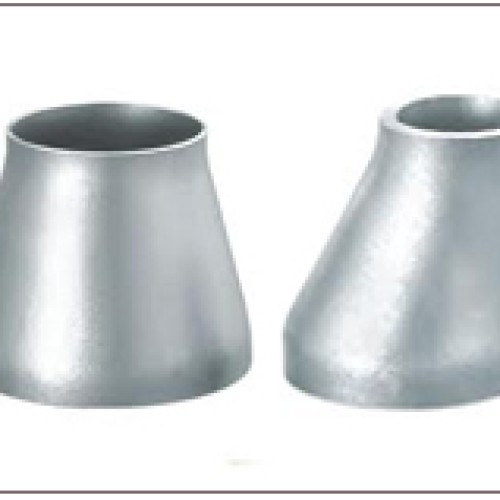

Eccentric & Concentric Reducers
Size : 1/8″NB TO 48″NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Form : Eccentric Reducer, Concentric Reducer
INCONEL® alloy 625 (UNS N06625)
Ni 58.0, Cr 21.5 Mo 9.0, Mn 0.50 C0.10 Si 0.50 Fe 5.0
Applications
• Components where exposure to sea water and high mechanical stresses are required.
• Oil and gas production where hydrogen sulfide and elementary sulfur exist at temperature in excess of 150C.
• Components exposed to flue gas or in flue gas desulfurization plants.
• Flare stacks on offshore oil platforms.
• Hydrocarbon processing from tar-sand and oil-shale recovery projects.
Specifications
Form Standard
Metal Type UNS N06625
Bar ASTM B446 AMS 5666 BS3076
Wire AMS 5837
Sheet ASTM B443 AMS 5599 BS3072
Plate ASTM B443 AMS 5599 BS3072
Pipe ASTMB444 ASTM B704 AMS 5581 BS3074 GEB50TF133
Tube ASTM B444 ASTM B704 AMS 5581 BS3074 GEB50TF133
Fitting ASTM B366 Din 17754
Forging
Weld Wire
Weld Electrode
NA 21 All forms
Din 2.4856
