Product Description

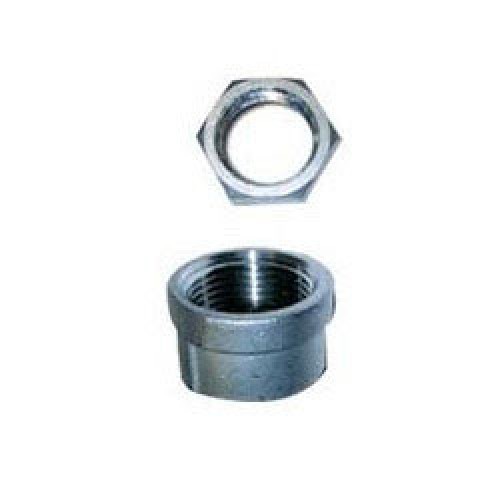

Inconel 600 Seamless Cap Inconel 600 is a difficult metal to shape and machine using traditional techniques due to rapid work hardening. After the first machining pass, work hardening tends to plastically deform either the workpiece or the tool on subsequent passes. For this reason, age-hardened Inconels such as 718 are machined using an aggressive but slow cut with a hard tool, minimizing the number of passes required. Alternatively, the majority of the machining can be performed with the workpiece in a solutionised form, with only the final steps being performed after age-hardening. External threads are machined using a lathe to "single point" the threads, or by rolling the threads using a screw machine. Holes with internal threads are made by welding or brazing threaded inserts made of stainless steel. Cutting of plate is often done with a waterjet cutter. Internal threads can also be cut by single point method on lathe, or by threadmilling on a machining center. New whisker reinforced ceramic cutters are also used to machine nickel alloys. They remove material at a rate typically 8 times faster than carbide cutters. Available forms are Inconel 600 Seamless Pipe,Inconel 600 Welded Pipe, Inconel 600 Seamless Tube, Inconel 600 Welded Tube, Inconel 600 Round Bars, Inconel 600 Wire, Inconel 600 Sheet,Inconel 600 Plate, Inconel 600 Forgings, Inconel 600 Pipe Fittings and Inconel 600 Flanges. Chemical Analysis of ALLOY 600 (UNS N06600) C MN P S Si Cr Ni Mo Cu Co Cb+Ta Ti Al Fe Other .15 max 1.0 max .015 max .5 max 14.0 - 17.0 72.0 min .5 max 6.0 - 10.0 Specification:- Sheet/Plate ASME SB-168 / AMS 5540 Round Bar ASME SB-166 / AMS 5665 Pipe ASME SB-167 / 829 / 517 / 775 Tube ASME SB-163 / 516 / 751 / AMS 5580 Fittings ASME SB-366 Forgings ASME SB-564 / AMS 5665
